Description

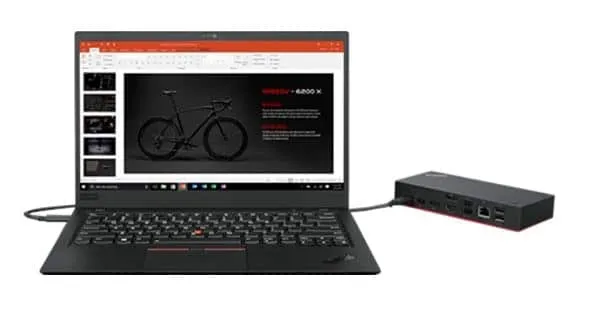

The smarter way to work, introducing the Lenovo ThinkPad Universal USB-C Dock 40AY0090EU Compatibility .
This advanced, universally compatible one-cable docking solution lets you work smarter, not harder.
It comes with a vast array of ports, next-gen plug and play functionality, and rapid charging capabilities (up to 100W for most USB-C notebooks).
Smart enough to install critical firmware updates automatically, it’s ideal for any mixed-PC environment and home-based working, and gives you the freedom and power to do more.

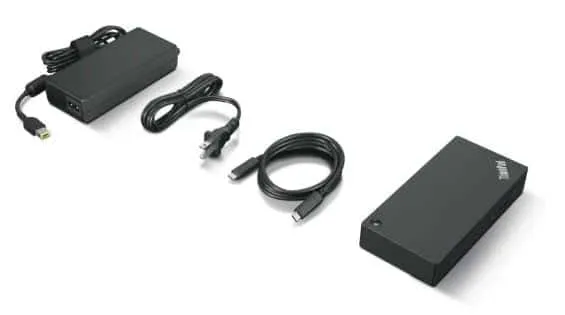

The in-box 90W power adapter charges ThinkPad and other USB-C notebooks up to 65W.
For 100W charging, an optional slim tip 135W power adapter is required (PN: 4X20E50558); sold separately.
Lenovo ThinkPad Universal Dock Details
- One Dock . No Limits : Ideal for both office-based and remote working, it’s an IT manager’s dream critical firmware updates are installed automatically and traditional IT tools, such as PXE boot, WOL, and MAC Address Pass Through, are also supported
- One Cable. No Clutter : ThinkPad Universal USB-C Dock lets you savour blazing-fast data transfers, rapidly charge USB-C notebooks, and plug and play displays and other PC accessories.
What’s more, this advanced one-cable docking solution gives you more desk-space to work and play with - One Remote Workforce : Whether end users are in the office, hot-desking, or working from home, IT managers can remotely and securely gather key information about the dock and its attached devices with minimal interruption to the user’s workflow
One Dock. No Limits
Engineered for performance and productivity, the ThinkPad Universal USB-C Dock is compatible with most Windows 10 and above USB-C notebooks.
Ideal for both office-based and remote working, it’s an IT manager’s dream critical firmware updates are installed automatically and traditional IT tools, such as PXE boot, WOL, and MAC Address Pass Through, are also supported.
Lenovo ThinkPad Universal Dock One Cable. No Hassle

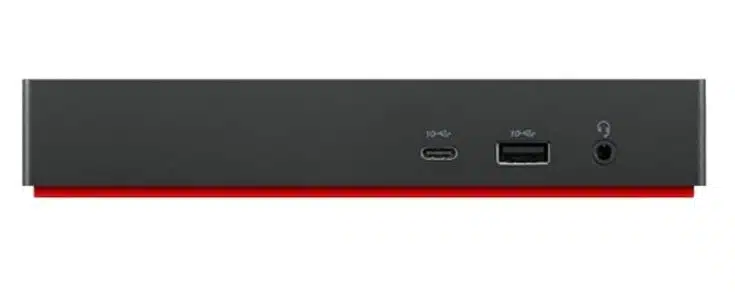

With the convenience of 11+ ports, including DisplayPort and HDMI , the ThinkPad Universal USB-C Dock gives you exceptional versatility.
It lets you savour blazing-fast data transfers, rapidly charge USB-C notebooks, and plug and play displays and other PC accessories.
What’s more, this advanced noncable docking solution gives you more desk-space to work and play with.
Lenovo ThinkPad Universal Dock Specs
Color : Black
Max Number of External Monitors : 3
Lenovo ThinkPad Universal Dock New Weight : 340g
Refresh Rate : 2x 3840×2160 60Hz, 1x 3840×2160 30Hz
AC Plug : Slim-tip
Warranty Type : CRU
Output Power : 65W with 90W power adapter connected,100W with 135W power adapter connected
Brand : ThinkPad
OS Requirements : Windows 11, Windows 10, Windows 7
Lenovo ThinkPad Universal Dock Packed Weight :955g
Agency Approvals : FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM
Audio Ports : 1x Combo Audio Jack
Charging Port : DC-IN
USB Ports : 3x USB3.1, 2x USB2.0, 1x USB-C
Video Ports : 2x Display Port, 1x HDMI Port
Ethernet : 1x Gigabit Ethernet
Package Type : Brown Box
Packed Dimensions (L x D x H) : 210*158*75mm
Height : 30.75 mm
New Cable Length : 171mm
Lenovo ThinkPad Universal Dock Depth : 80mm
Warranty Period : 3years
Maximum Operating Temperature : 35° C
Minimum Operating Temperature : 0° C
Maximum Relative Humidity (%) : 95% ( no Condensation)
Minimum Relative Humidity (%) : 20%
Driver Needed : Yes
Input Power : 90W
Physical Security Feature : 2x Security lock slot
Power Button : Yes
Power Delivery : Yes
40AY0090EU compatibility :
- ThinkPad P14s Gen 2
- P15s Gen 2; T14 Gen 2
- T14s Gen 1; T14s Gen 2
- x1 Carbon Gen 8
- X1 Carbon Gen 9
- X1 Nano Gen 1
- X1 Titanium Yoga Gen 1
- X1 Yoga Gen 5
- X1 Yoga Gen 6
- X13 Gen 1
- X13 Gen 2
- X13 Yoga Gen 2
