Description

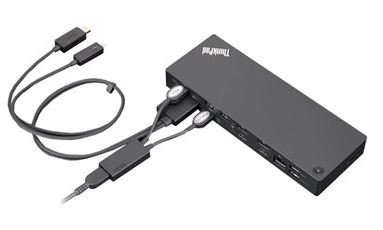

Lenovo ThinkPad Thunderbolt 3 Dock Station Gen2 135W understands that modern business depends on a wide variety of notebooks and devices from different brands working seamlessly together to meet business needs.
To deliver this experience, ThinkPad Thunderbolt 3 Dock Gen 2 is compatible with Lenovo ThinkPad Notebooks as well as notebooks from HP, Dell, Apple and other brands
Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their USB-C port and require up to 65W power charging.
Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough,
WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.
Key Details
- Universal Compatibility: This dock works with Lenovo, ThinkPad and any other brands’ Thunderbolt or USB-C enabled laptops
- Expand your horizons with 40Gbps transfer rates, 5K video or multi 4K displays, 65W charging and multiple ports for peripherals with single cable connectivity
- Enterprise IT-Friendly: Supports network manageability such as PXE boot, Wake-on-Lan from a variety of modes, and MAC address Pass Through with ThinkPad Laptops
ThinkPad Thunderbolt 3 Dock Gen2 Tech Specs
General : ThinkPad Thunderbolt 3 Dock Gen 2 – US
Supported Operating Systems : OS Independent
Max Number of External Monitors : 3
Hardware Requirements : ThinkPad
Weight : 525g
Brand : ThinkPad
Output Power : 90W
OS Requirements : OS Independent
ThinkPad Thunderbolt 3 Dock Gen2 Charging Port : ThinkPad Slim-Tip Port
Packed Weight : 1395g
Agency Approvals : cULus, FCC,ICES,NOM
Audio Ports : 1 x 3.5mm Stereo/Mic Combo Port
USB Ports : 5 x USB 3.1 (1 always “on”), 1 x Thunderbolt 3 downstream (3A)
Video Ports : 2 x DP 1.4, 2 x HDMI 2.0
Ethernet : 1 x Gigabit
Thunderbolt Port : Yes, Downstream (3A)
Package Type : brown box
Packed Dimensions (L x D x H) : 270x164x75mm
Height : 30mm
Length : 220mm
Depth : 80mm
Warranty Period : 3 years
Maximum Operating Temperature : 40 celsius
ThinkPad Thunderbolt 3 Dock Gen2 Minimum Operating Temperature : 0 celsius
Maximum Relative Humidity (%) : 95
Minimum Relative Humidity (%) : 5
Driver Needed : Yes, ready at Preload
Input Power : 135W
Physical Security Feature : Yes, Kensington Lock Slot
Power Button : Yes
Power Delivery : Yes
Shipment Group : 135W adapter, 1x power cord, standard Thunderbolt cable ,warranty and setup poster
Warranty Type : CRU
AC Plug slim tip : Black
ThinkPad Thunderbolt 3 Dock Gen2 Refresh Rate : 2x 4K 60Hz or 3 x 1080p
We also have Lenovo Thunderbolt 3 Cable 0.7m.
