Description

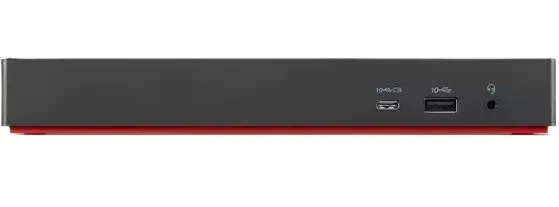

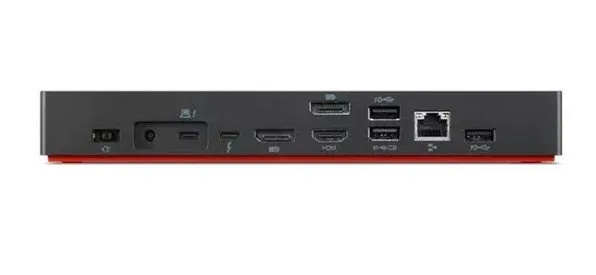

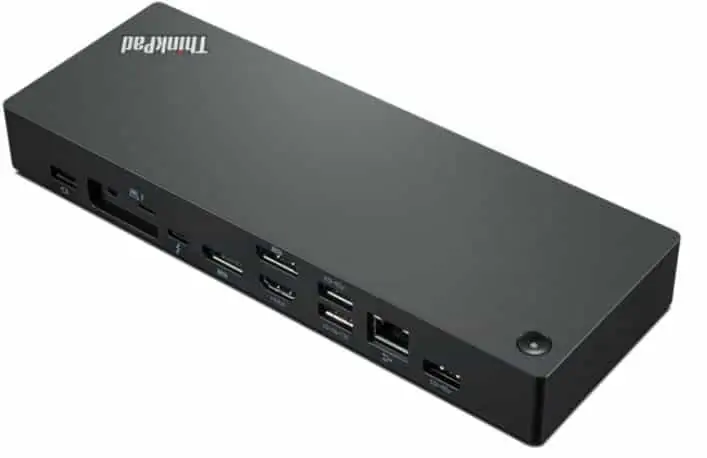

ThinkPad Universal Thunderbolt 4 Dock Overview
Enterprise-Grade ThinkPad Lenovo 40B00135US Universal Thunderbolt 4 Dock Station Experience with high specs .
delivers reliable and consistent industry leading video, data and power connectivity in a Windows based mixed-PC environment.
Maximize Your Productivity. Expand your horizon with versatile 8K display support or multiple 4K displays support, silent firmware upgrades, VPro/AMT support and transfer data at lightning fast 40Gbps.
The Universal Thunderbolt 4 is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.
Key Details
- Supports upto 100W PD, Single 8K 30Hz or upto 4 4K 60HZ display support
- Silent firmware upgrades
- vPro/AMT Pass through support
- Data transfer rates upto 40 Gbps (depending on host system and peripheral processing capability, file attributes, and other configuration and operating environment factors)
ThinkPad Universal Thunderbolt 4 Dock Tech Specs
General : ThinkPad Universal Thunderbolt 4 Dock – US
Supported Operating Systems : OS Independent
Included Accessory : 135W adapter, 1x power cord, standard Thunderbolt cable
Color : Black/Red
Max Number of External Monitors : 4
Hardware Requirements : Host with USB-C/Thunderbolt port
Weight : 0.45Kg
Brand : ThinkPad
Output Power : Max 100W
OS Requirements : OS Independent
Charging : Port DC-IN
Packed Weight : 1.2Kg
Agency Approvals : cULus, FCC,ICES,NOM
Audio Ports : 1* 3.5mm Audio combo Jack
USB Ports : 4* USB-A 1* USB-C
Video Ports : 1* HDMI 2.1 2* DP 1.4
Ethernet : 1* Gigabit Ethernet
Thunderbolt Port : 1* Thunderbolt Port – for Host connect 1* Thunderbolt Port – for Device connect
Package Type : brown box
Packed Dimensions : (L x D x H) 270*195*85mm
Height : 30mm
Length : 220mm
Depth : 80mm
Warranty Period : 3 years
Maximum Operating Temperature : 40 celsius
Minimum Operating Temperature : 0 celsius
Maximum Relative Humidity : (%) 95%
Minimum Relative Humidity : (%) 5%
Driver Needed : Yes
Input Power : 20V 6.75A
Physical Security Feature : 1* NanoSaver lock slot 1*MicroSaver lock slot
Power Button : Yes
ThinkPad Universal 4 Dock Power Delivery : Yes

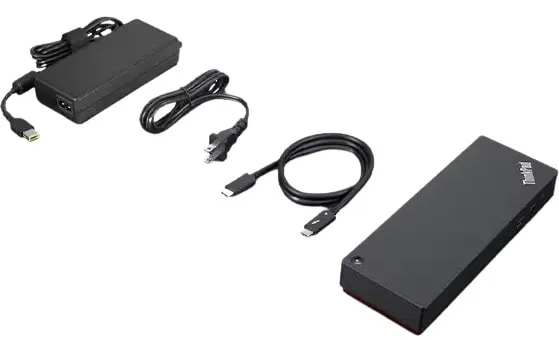

Shipment Group : Universal TBT 4 Dock, 135W AC Power adapter, Power cord, Setup poster&Warranty Poster Standard TBT 4 Cable
Warranty Type : CRU
AC Plug : Slim Tip
Refresh Rate : 1* 8K 30Hz Via HDMI 2.1 4*4K 60 Hz
