Description

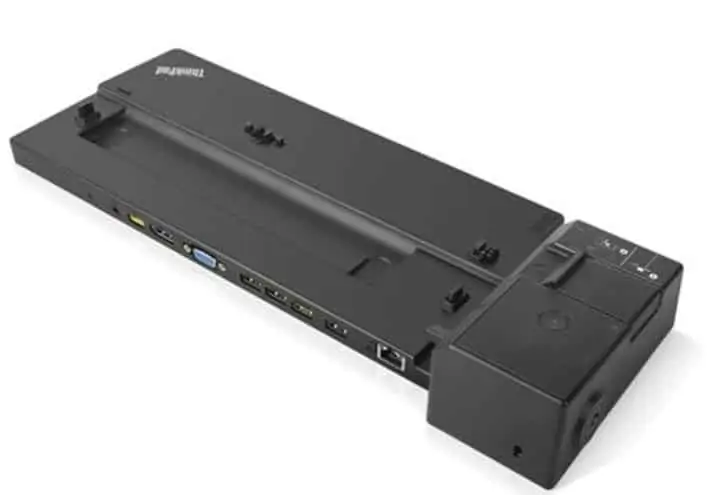

Lenovo ThinkPad Basic Docking Station
The innovative side connector of the Lenovo ThinkPad Basic Docking Station, designed exclusively for ThinkPad notebooks,
provides a driver-free way to connect conveniently and securely to a range of USB accessories and external displays, while rapid charging support and a mirrored power button make it easy to disconnect and go.
Designed for large enterprise environments, Lenovo Basic Docking Station support PXE boot, wake on LAN, and MAC address pass-through, simplifying asset management for IT managers.
Painstakingly designed and extensively tested, ThinkPad Basic Docking Station provides a seamless docking experience to enhance productivity and convenience.
Depending on many factors such as the processing capability of the host and peripheral devices, file attributes, and other factors related to system configuration and operating environments,
the actual data transfer rate will be slower than 5 Gbit/s on USB 3.1 Gen 1 (USB 3.0) connectors, slower than 10 Gbit/s on USB 3.1 Gen 2 connectors, and slower than 20Gbit/s on USB 3.2 connectors.
Key Details
- Enterprise-class universal docking for 2018 and newer T, L and X Series ThinkPad notebooks
- Driver-free side dock connects via USB-C
- Mechanical dock with convenient one-step release
- Built for Large Enterprise IT, supports PXE boot, wake on LAN & MAC address pass-through
- Can charge mobile devices with 15W and 10.5W from USB-C port and USB3.0 always power-on port respectively
ThinkPad Basic Docking Station Tech Specs
General : ThinkPad Basic Docking Station (American Standard Plug)
Supported Operating Systems : OS Independent
Compatibility : P52s, L580, L480, T580, P580p, T480s, T480, X1 Carbon Gen 6, X280
Color : Black
Max Number of External Monitors : 1
Hardware Requirements : ThinkPad Side Docking Connector
ThinkPad Basic Docking Station Weight : 0.74 kg (1.63 lbs)
Brand : ThinkPad
Output Power : 65 W
OS Requirements : OS Independent
Charging Port : ThinkPad Slim-tip Port
Agency Approvals : AS/NZS S-DOC, BSMI, CB, CE, EAC, EU DOC, FCC, ICES, KCC, NOM, Ukr SEPRO, UL / cUL, VCCI
Audio Ports : 1 x 3.5 mm Stereo/Mic Combo Port
USB Ports : 2 x USB 3.0 (5 Gbps, 1 always-on), 2 x USB 2.0
Lenovo Basic Docking Station Video Ports : 1 x DisplayPort 1.4, 1 x VGA
Package Type : Brown box
Warranty Period : 3 Years
Maximum Operating Temperature : 35 degrees Celsius (95 degrees Fahrenheit)
Minimum Operating Temperature : 0 degrees Celsius (32 degrees Fahrenheit)
Driver Needed : Preloaded in select ThinkPad laptops
Input Power : 90 W
Power Button Yes
Shipment Group : ThinkPad Basic Docking Station, ThinkPad Slim-tip 90 W AC power adapter, Power cord, Product information, safety and warranty poster
Warranty Type : CRU
Lenovo Basic Docking Station AC Plug : American Standard Plug
Refresh Rate DisplayPort : 4096 x 2160 60 Hz, VGA: 2048 x 1536 85 Hz,, “Maximum resolution” refers to what can be supported by the dock.
Actual resolution will vary by laptop.
We also have Lenovo Thunderbolt 3 Cable 0.7m.
