Description

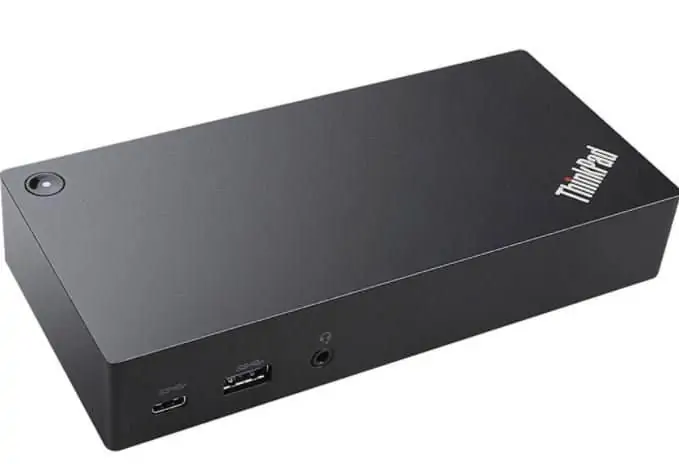

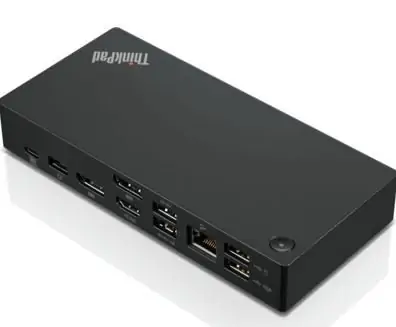

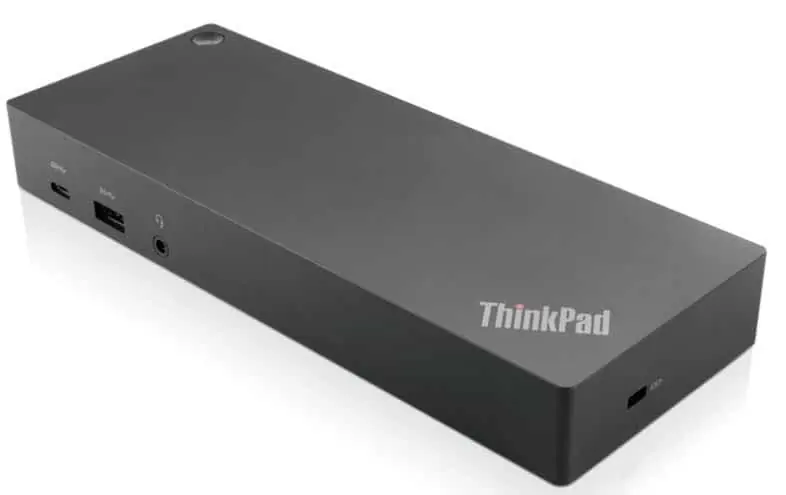

Lenovo ThinkPad Hybrid USB-C
The Lenovo ThinkPad Hybrid USB-C Docking Station 40AF0135US with USB-A dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments.
Featuring enterprise-class manageability, like PXE boot and MAC address pass-through,
The ThinkPad Hybrid USB-C with USB-A docking station offers three high-speed USB 3.1 ports and includes a USB-C to USB-A adapter to provide port replication to non-Lenovo or USB-C laptop computers.
This ThinkPad Hybrid dock also supports dual monitor setups, up to dual UHD 4K resolution, and rapid charging for ThinkPad notebooks.
Key Details
- Enterprise-class capabilities with PXE boot, Wake-On-Lan, and MAC address pass-through
- Supports ThinkPad RapidCharge
- Connects with up to dual UHD 4K display with DP and HDMI ports
- Delivers up to 10Gbps data transfer speed on 3 x USB 3.1 ports
Lenovo ThinkPad Hybrid USB-C Specs
General : ThinkPad Hybrid USB-C with USB-A Dock (American Standard Plug Type B)
Other Information about Lenovo ThinkPad Hybrid USB-C Docking Station :
• 3 x USB 3.1 gen2 (10Gbps, 1x always-on USB charging)
• 2 x USB2.0
• 1 x USB-C port (Data,5V 3A power)
• 1 x Gigabit Ethernet
• 2 x Display Port
• 2 x HDMI Port
• 1 x Stereo/Mic Combo Audio Port
Supported Operating Systems : OS Independent
Compatibility : E580, E480, E470, L580, L480, L470, L380, L380 Yoga, Lenovo Tablet 10, Miix 520-12IKB, T580, T570, T480, T480s, T470, T470s, T460, ThinkPad 25, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X1 Tablet Gen 3, X1 Tablet Gen 2, 13 Gen 3 Windows, X280, X270, X260
Color : Black
Max Number of External Monitors : 2
Hardware Requirements Machine with full function : USB-C port or USB 3.0 Port
Lenovo ThinkPad Hybrid USB-C Docking Station Weight : 480 g (1.05 lbs)
40AF0135US Brand : ThinkPad
Output Power : 90 W
OS Requirements : OS Independent
Charging Port : ThinkPad Slim-tip Port
Agency Approvals : BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Kvalitet, TUV Mark, Ukraine DoC, VCCI
Audio Ports : 1 x 3.5 mm Stereo/Mic Combo Port
USB Ports : 1 x USB-C (Data, 5V/3A power), 3 x USB 3.1 Gen2 (10 Gbps, 1 always-on), 2 x USB 2.0
Video Ports : 2 x DisplayPort 1.2, 2 x HDMI
Package Type : Brown box
Warranty Period : 3 Years
Maximum Operating Temperature : 35 degrees Celsius (95 degrees Fahrenheit)
Minimum Operating Temperature : 0 degrees Celsius (32 degrees Fahrenheit)
Driver Needed : Preloaded in select ThinkPad laptops
Lenovo ThinkPad Hybrid USB-C Docking Station Input Power : 135 W
40AF0135US Power Button : Yes
Power Delivery : Yes
Shipment Group : ThinkPad Hybrid USB-C with USB-A Dock,ThinkPad Slim-tip 135 W AC power adapter,1m USB-C Cable with USB-A Adapter,Power cord,Product information, safety and warranty poster
Warranty Type : CRU
AC Plug : American Standard Plug Type B
Refresh Rate Display Port : 3840 x 2160 60 Hz, HDMI: 3840 x 2160 60 Hz, Bundle DisplayPort 1 & DisplayPort 2 to the monitor: 5120 x 2880 60 Hz,, “Maximum resolution” refers to what can be supported by the dock. Actual resolution will vary by laptop.
