Description

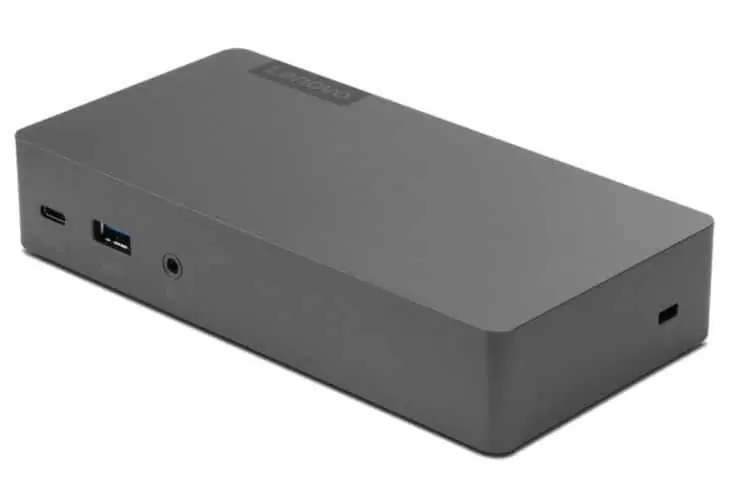

Lenovo Thunderbolt 3 Essential Dock Overview
Lenovo Thunderbolt 3 Essential Dock understands that modern business depends on a wide variety of notebooks and devices from different brands working seamlessly together to meet business needs.
To deliver this experience, Lenovo Thunderbolt 3 Essential Dock is compatible with Lenovo ThinkPad Notebooks as well as notebooks from HP, Dell, Apple and other brands
Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their Type C port and require up to 65W power charging.
Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough,
WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.
Key Details
- Universally compatible, this dock works with Lenovo, ThinkPad and any other brands’ Thunderbolt or USB-C enabled laptops
- Expand your horizons with 40Gbps transfer rates to support dual 4K displays, power charging, and multiple ports for peripherals with one cable Connection
- Enterprise IT-Friendly. Supports network manageability such as PXE boot, Wake-on-Lan from a variety of modes, and MAC address Pass Through with ThinkPad Laptops
Lenovo Thunderbolt 3 Essential Dock Tech Specs
General : Lenovo Thunderbolt 3 Essential Dock
Supported Operating Systems : OS Independent
Included Accessory : 135W adapter, 1x power cord, standard Thunderbolt cable
Color : Iron grey
Max Number of External Monitors : 2
Hardware Requirements : Host with USB-C/Thunderbolt port
Lenovo Thunderbolt 3 Essential Dock Weight : 0.38kg
Brand : lenovo
OS Requirements : OS Independent
Packed Weight : 1.18kg
Agency Approvals : cULus, FCC,ICES,NOM
Audio Ports : 3.5 mm Combo Audio Jack
Lenovo Thunderbolt 3 Essential Dock USB Ports : Two USB-A 3.0 Gen 1, 5 Gbps (1 x always-on charging), Two USB-C Downstream Port, 10 Gbps (5V/3A power-out, no video support)
Video Ports : 1x DisplayPort 1.4 1x HDMI 2.0
Ethernet : RJ45 Gigabit
Thunderbolt Port : 1x Thunderbolt 3 port for PC host connection usage
Package Type : brown box
Packed Dimensions : (L x D x H) 204x175x75mm
Height : 31mm
Length : 160mm
Depth : 80mm
Warranty Period : 1 year
Maximum Operating Temperature : 40 celsius
Maximum Relative Humidity : (%) 95
Minimum Relative Humidity : (%) 5
Driver Needed : Yes, please refer to Lenovo service Web for latest driver
Minimum Operating Temperature : 0 celsius
Input Power : 20V, 6.75A
Physical Security Feature : Kensington slot
Power Button : no
Power Delivery : 65W to host
Shipment Group : warranty and setup poster
Warranty Type : CRU
