Description

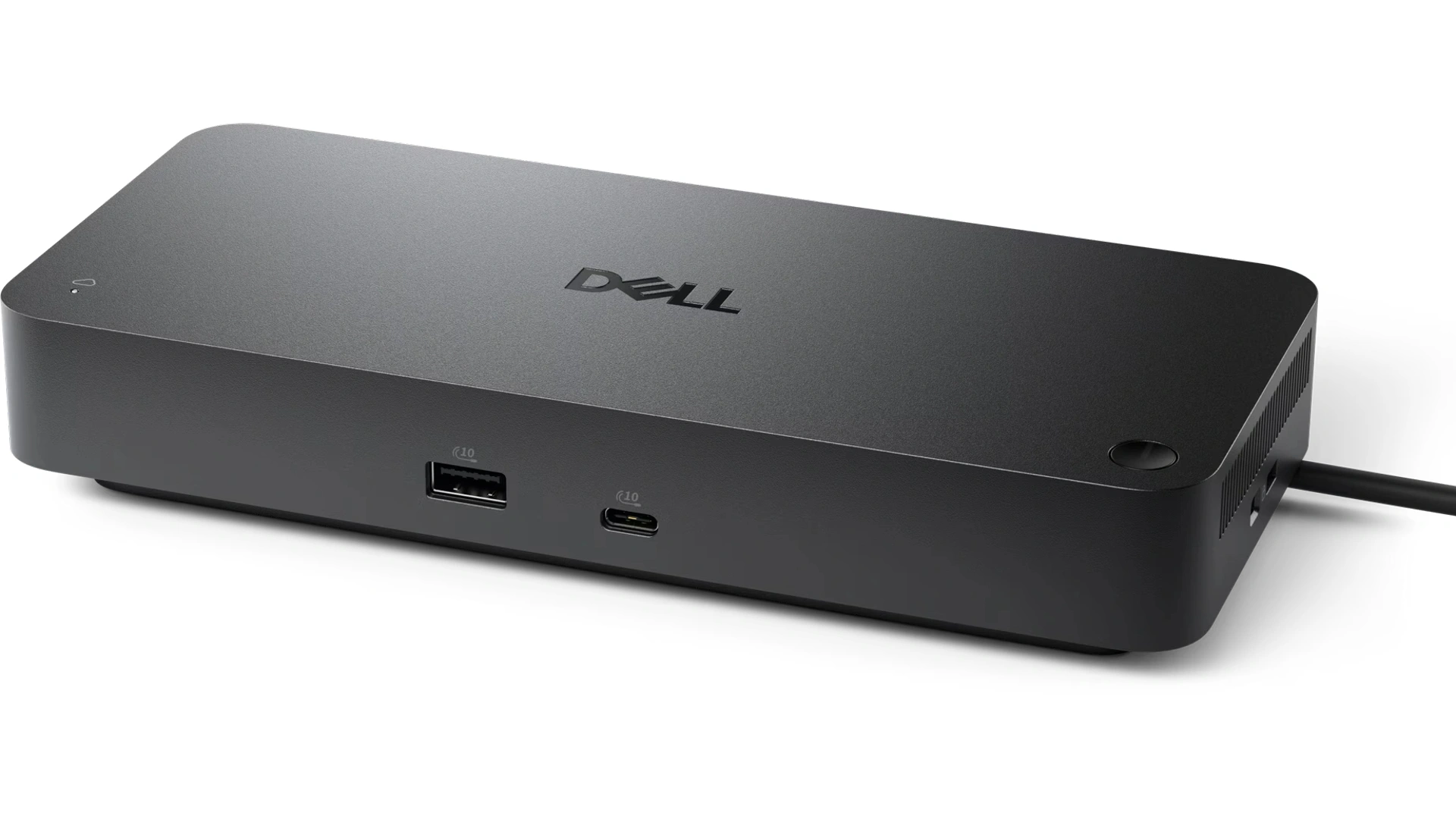

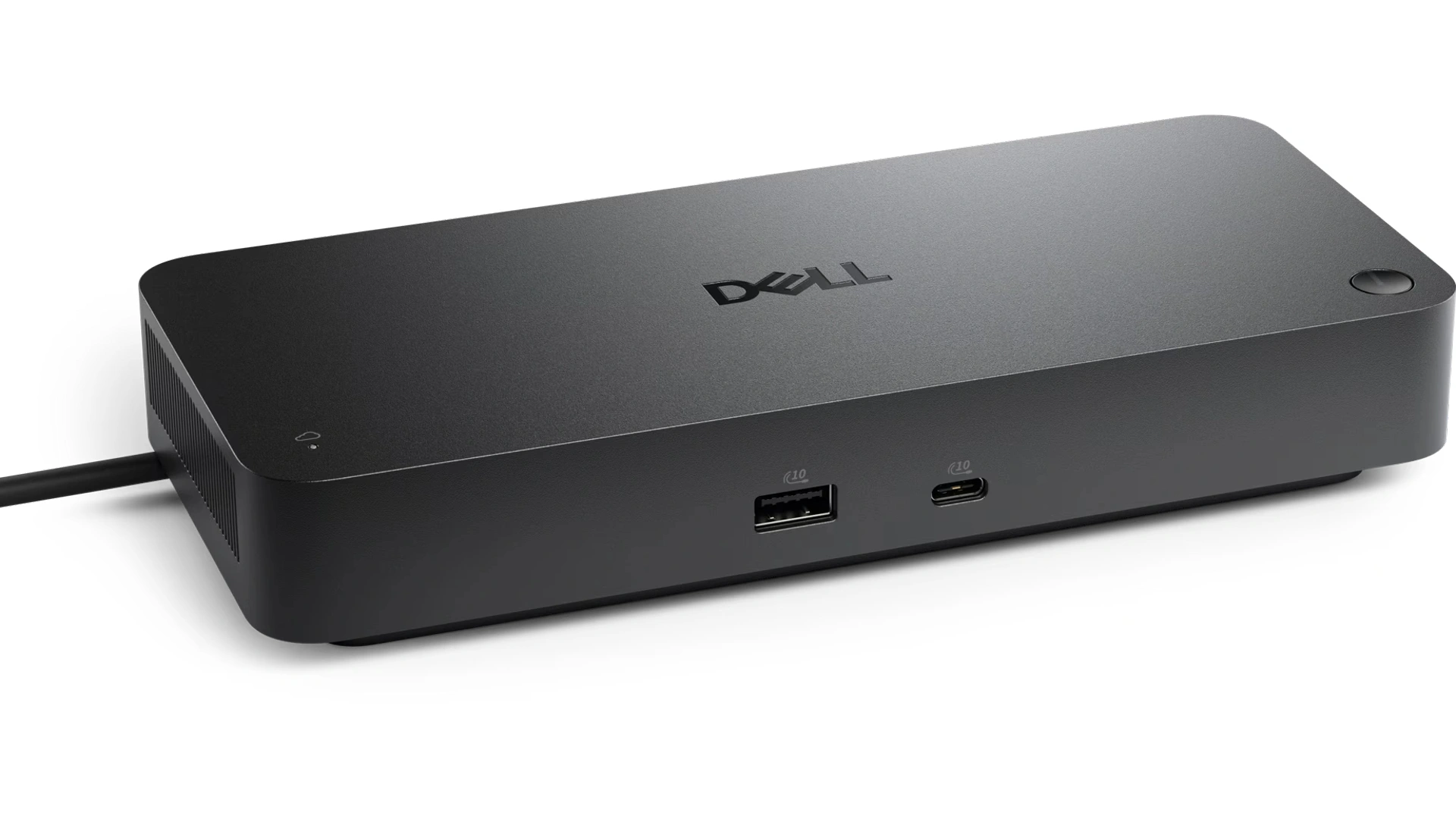

The Dell Pro Thunderbolt 4 Dock Smart SD25TB4 is a cutting-edge docking solution designed to enhance productivity and connectivity for professionals and tech enthusiasts alike. These Docking Stations
features multiple Thunderbolt 4 ports, allowing users to connect a variety of devices, including monitors, external storage, and peripherals, all through a single cable. With its ability to deliver up to 90W of power, it not only supports fast data transfer but also ensures that connected laptops and devices remain charged, streamlining the workspace and reducing cable clutter.
Dell Docking Stations Features
- Engineered for success : Maximize your AI PC productivity by seamlessly using Gen AI tools across up to four 4K 60Hz displays, staying powered with up to 130W power delivery, and connecting all your peripherals effortlessly.
- Connect your way : Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.
- Designed for sustainability : The Dell Pro Thunderbolt 4 Smart Dock is built with at least 65% post-consumer recycled materials and packaged with 100% recycled or renewable packaging.
Dell Pro Thunderbolt 4 Dock Specs
- Connectivity Technology : Wired
- Number of Displays Supported : 4
- Device Supported : Notebook
- Ethernet Technology : RJ45 Ethernet port, 2.5GbE
- Maximum Power Supply Wattage : 180W
- Height : 8.07″
- Width : 3.54″
- Depth : 1.39″
- Weight (Approximate) : 1.28lb
- Kensington Security Slot : Yes
Request for Quotation Now!
Other Specs for Dell Pro Thunderbolt 4 Dock
Management Features
Host PC Management
- Intel AMT over Thunderbolt with select Intel vPro PCs
- MAC address pass-through
- PXE Boot
- Dock Power Button Sync
- Wake-On-LAN
- WLAN to LAN switch
- Kernel Direct Memory Access (DMA) protection
Dock Management Features
- Remote firmware updates without a PC
- Host-based firmware updates
- Firmware update on disconnect
- Port Disablement independent of PC
DP1.4 / DP2.1 with Display Stream Compression
Up to:
- 4 x 4K (3840×2160) 60Hz
- 3 x 4K (3840×2160) 60Hz
- 2 x 6K (6144 x 3456) 60Hz
- 1 x 8K (7680 x 4320) 60Hz
CONTACT US NOW!

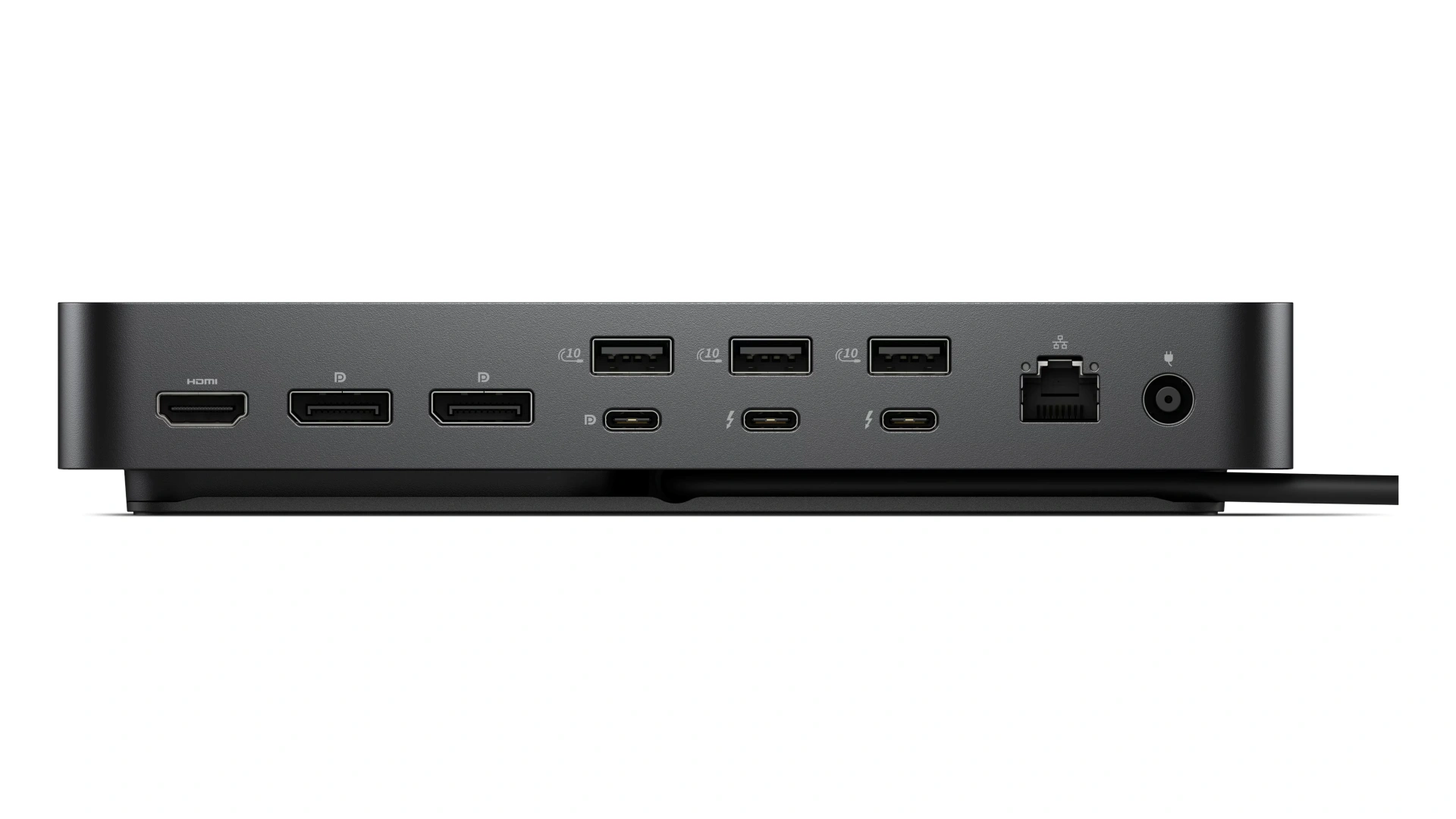

Dell Smart Dock Interfaces
Video interfaces
- 2 x DP1.4
- 1 x HDMI 2.1
- 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
- 2 x Thunderbolt 4
USB Ports (Data Only)
- 4 x USB-A 3.2 Gen 2 (10 Gbps)
- 1 x USB-C 3.2 Gen 2 (10 Gbps)
USB Ports (Power)
- 4 x USB-A 3.2 Gen 2 (4.5W each)
- 1 x USB-C 3.2 Gen 2 (15W)
- 1 x USB-C Multi-function DisplayPort (7.5W)
- 2 x Thunderbolt 4 (15W each)
- All deliver power with or without PC
USB Power Delivery
- 130W (Dell systems)
- 96W (non-Dell systems)
SD25TB4 Operating System Supported
- Windows 10
- Windows 11
- Ubuntu
- Red Hat Enterprise Linux
- ChromeOS
- macOS
Package Contents
- Docking Station
- Power Adapter and Power Cord
- Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
