Cisco 2960 24port Switch | Catalyst Switches

Description

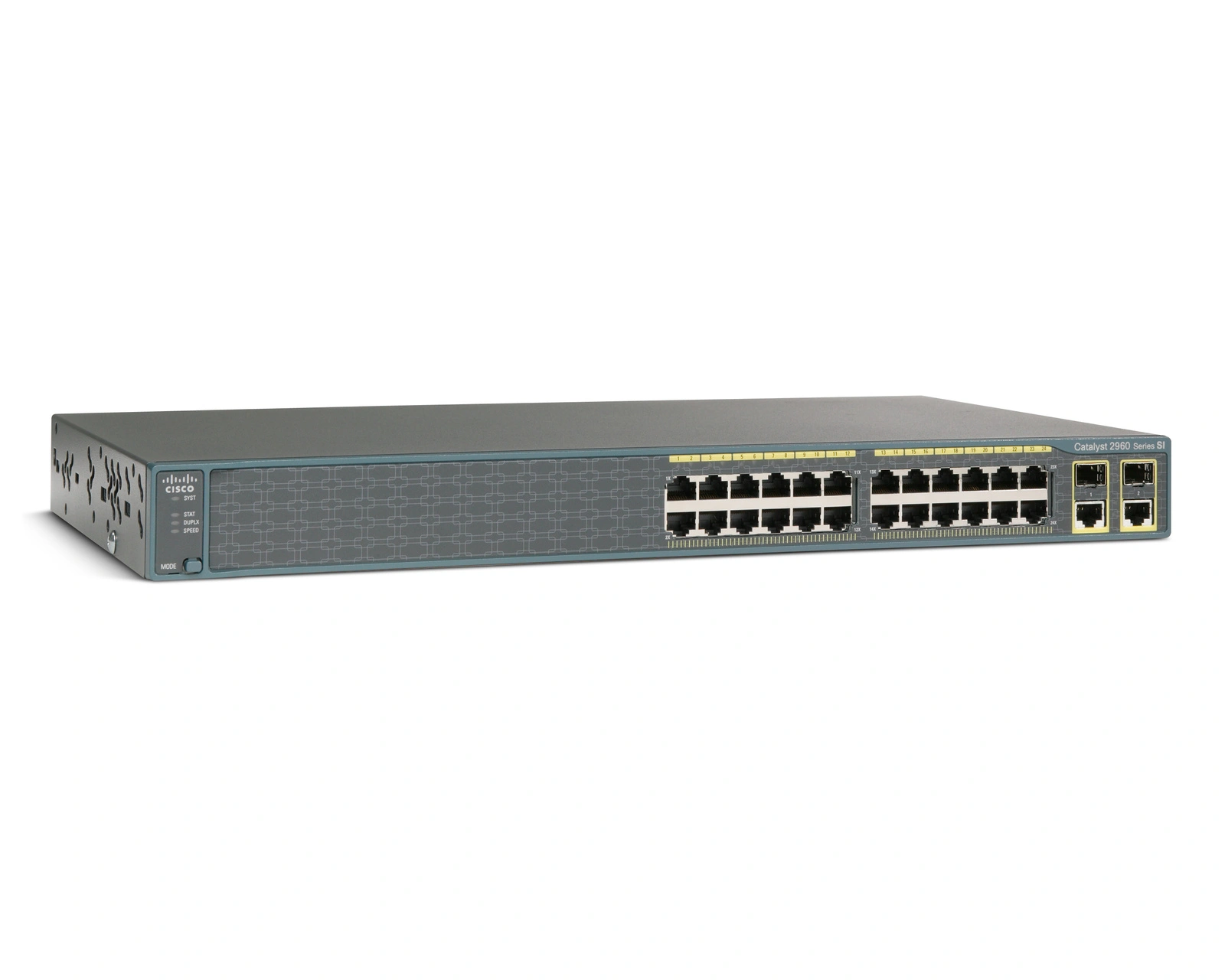

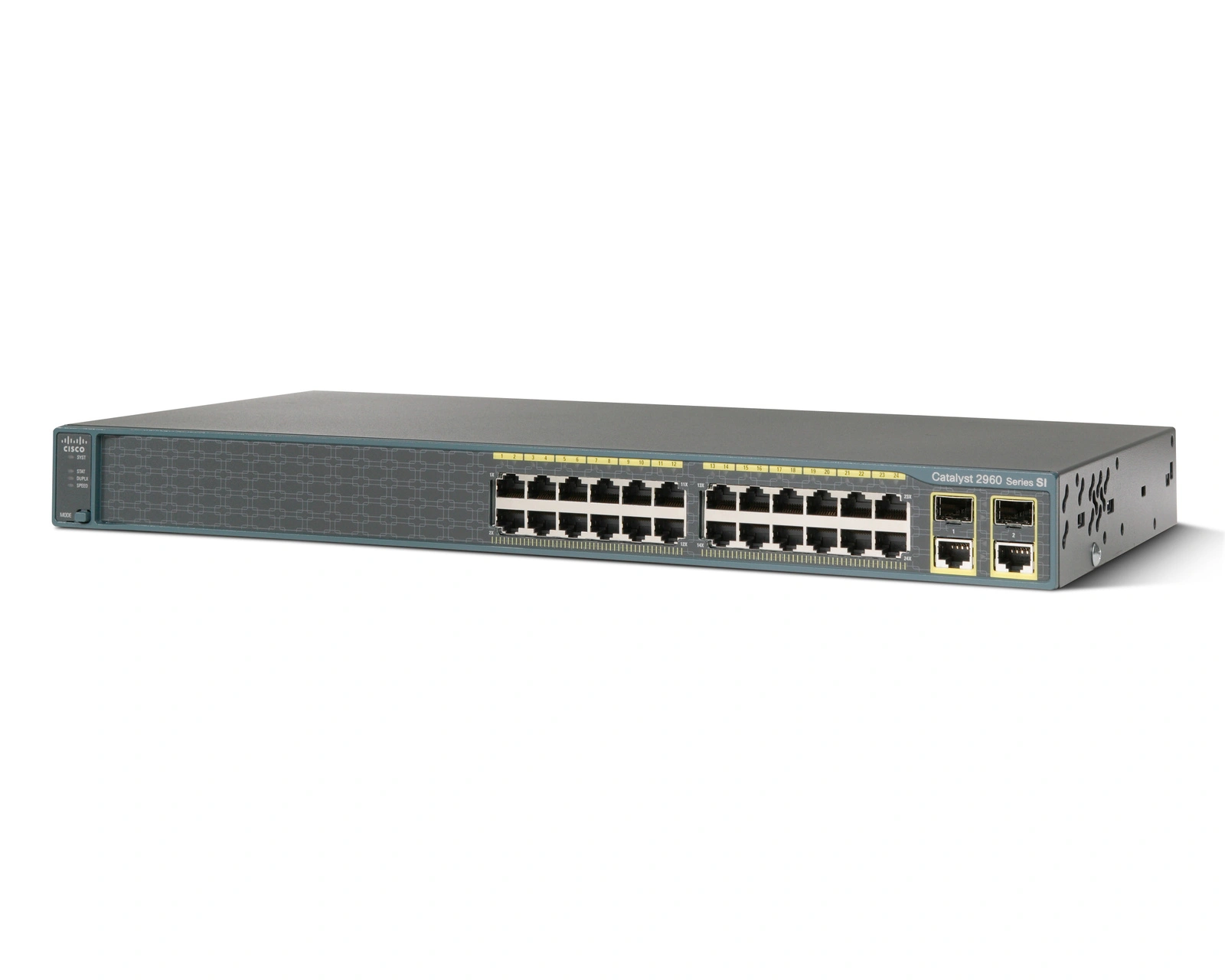

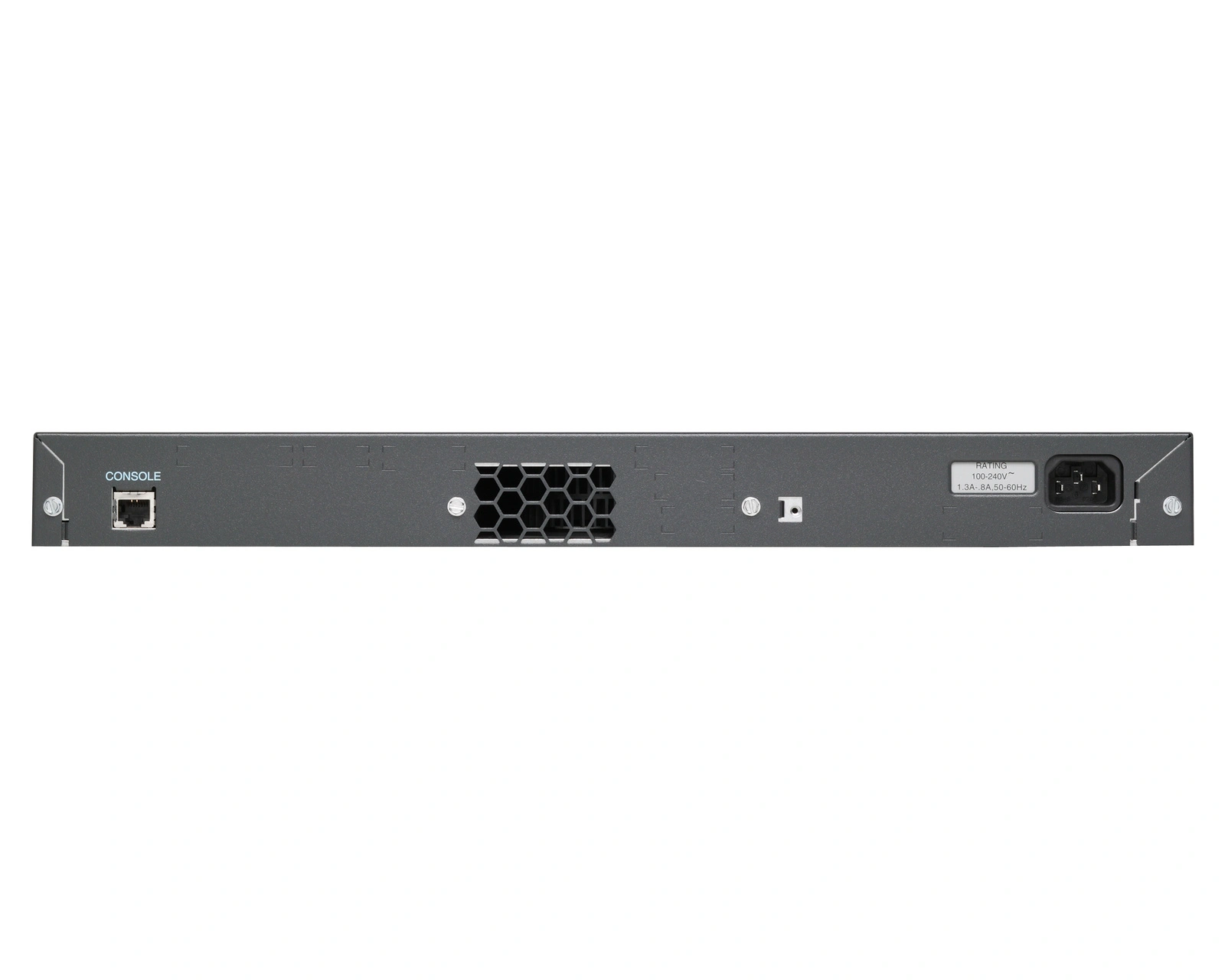

The Cisco Catalyst 2960 Cisco 2960 24port Series model WS-C2960G-24TC-L layer 2 switch designed to meet the demands of modern networking environments. This device part of the Catalyst 2960 series, which is renowned for its reliability and performance in providing essential connectivity solutions for enterprise networks. With 24 Ethernet ports, these network switches facilitates seamless data transfer and efficient network management

Equipped with advanced features, the WS-C2960G-24TC-L supports various networking protocols and offers enhanced security measures to protect sensitive data. Its layer 2 capabilities allow for efficient traffic management and VLAN support, enabling organizations to segment their networks for improved performance and security. Additionally, these network devices are designed for easy integration into existing network architectures, ensuring minimal disruption during deployment.

Cisco 2960 24port Switch Features

Availability and Scalability :

Superior Redundancy for Fault Backup
Integrated CISCO IOS Software Features for Bandwidth Optimization

Cisco 2960 24port Switch Advanced QoS :

Standard 802.1p CoS and DSCP field classification are provided, using marking and reclassification on a per-packet basis by source and destination IP address, source and destination MAC address, or Layer 4 TCP or UDP port number
CISCO control-plane and data-plane QoS ACLs on all ports help ensure proper marking on a per-packet basis
Four egress queues per port enable differentiated management of up to four traffic types across the stack
SRR scheduling ensures differential prioritization of packet flows by intelligently servicing the ingress and egress queues
Weighted tail drop (WTD) provides congestion avoidance at the ingress and egress queues before a disruption occurs
Strict priority queuing guarantees that the highest-priority packets are serviced ahead of all other traffic
There is no performance penalty for highly granular QoS functions

We will provide you Cisco Enterprise Switches and Cisco Access Switches

Cisco 2960 24port Switch Specs

Brand : CISCO
Series : Catalyst 2960
Model : WS-C2960G-24TC-L
Standards : IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3ad , IEEE 802.3ah (100BASE-X single/multimode fiber only) , IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports , IEEE 802.1D Spanning Tree Protocol , IEEE 802.1p CoS Prioritization , IEEE 802.1Q VLAN , IEEE 802.3 10BASE-T , IEEE 802.3u 100BASE-TX specification , IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X specification
Primary Ports : 20 Ethernet 10/100/1000 ports and 4 dual-purpose uplinks
Primary Port Speed : 10/100/1000Mbps
MAC Address Table : Up to 8000
VLAN Support : Yes
Jumbo Frames : Yes
Buffer Memory : 64 MB DRAM , 32 MB flash memory
LEDs : Per-port status: Link integrity, disabled, activity, speed, full-duplex , System status: System, RPS, link status, link duplex, link speed
Power : +12V at 10.5A
Dimensions : 17.5″ x 12.9″ x 1.7″
Weight : 10.0 lbs.
Temperature : 0ºC to 45ºC (32ºF to 113ºF)
Humidity : 10 to 85% (noncondensing)
Package Contents : WS-C2960G-24TC-L , Manual , Power Cord , Rack mount kit , Cable
Disclaimer : For most updated manufacturer warranty, please go to www.cisco.com.
Registration Phone : 1-800-Go-Cisco

Other Specs for Cisco 2960 24port Switch

Security :

IEEE 802.1x allows dynamic, port-based security,
providing user authentication ,
IEEE 802.1x with VLAN assignment allows a dynamic VLAN assignment for a specific user regardless of where the user is connected ,
IEEE 802.1x with voice VLAN permits an IP phone to access the voice VLAN irrespective of the authorized or unauthorized state of the port ,
Port-based ACLs for Layer 2 interfaces allow application of security policies on individual switch ports ,
Unicast MAC filtering prevents the forwarding of any type of packet with a matching MAC address.
Unknown unicast and multicast port blocking allows tight control by filtering packets that the switch has not already learned how to forward ,
SSHv2 and SNMPv3 provide network security by encrypting administrator traffic during Telnet and SNMP sessions. SSHv2 and the cryptographic version of SNMPv3 require a special cryptographic software image because of U.S.
export restrictions ,
Bidirectional data support on the Switched Port Analyzer (SPAN) port allows the CISCO Secure intrusion detection system (IDS) to take action when an intruder is detected ,
TACACS+ and RADIUS authentication enable centralized control of the switch and restrict unauthorized users from altering the configuration ,
MAC address notification allows administrators to be notified of users added to or removed from the network ,
DHCP snooping allows administrators to ensure consistent mapping of IP to MAC addresses.
This can be used to prevent attacks that attempt to poison the DHCP binding database, and to rate-limit the amount of DHCP traffic that enters a switch port.

Request for Quotation for Cisco 2960 24port Switch price

For more Cisco Catalyst Switches products

Additional information

Brand	Cisco
Item Type	Network Switches

Cisco 2960 24port Switch WS-C2960G-24TC-L
