HP Intel Xeon E5630 DL380 G7 587478-B21

Description

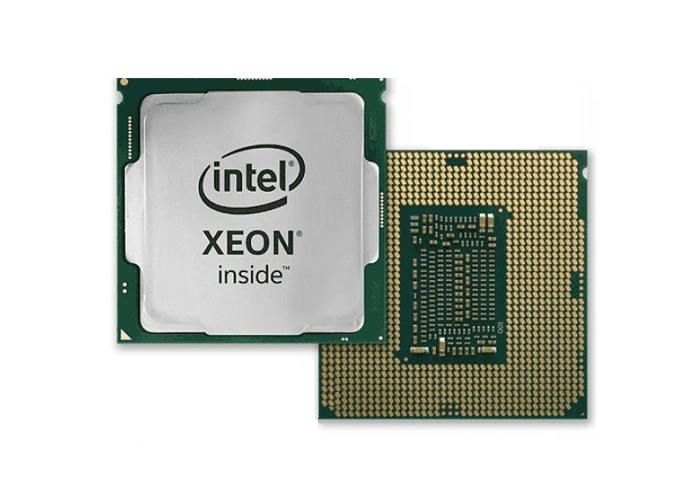

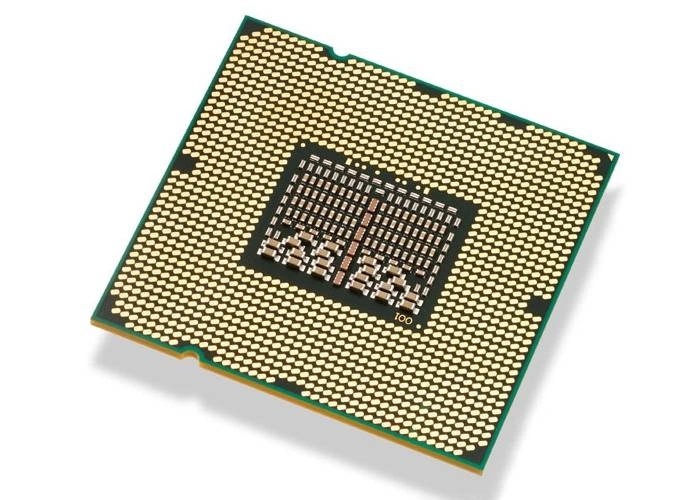

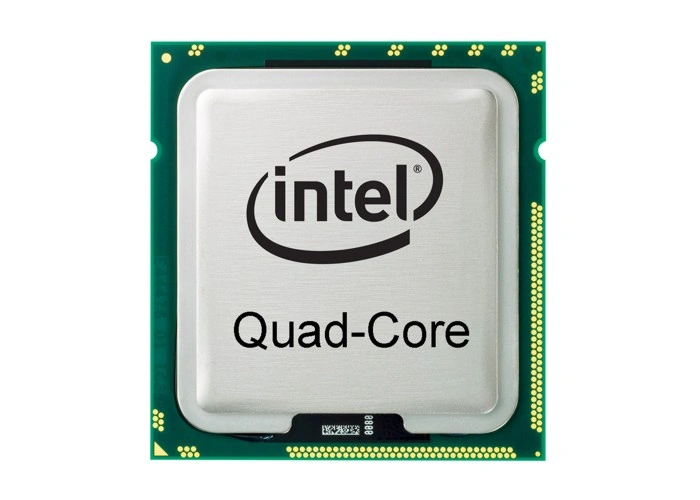

The HP Intel Xeon Quad-Core E5630 587478-B21 processor is a powerful computing component designed for the HP DL380 G7 server model. This processor features four cores, allowing it to handle multiple tasks simultaneously with enhanced efficiency. With a base clock speed that provides robust performance, the E5630 is well-suited for demanding applications and workloads, making it an ideal choice for enterprise environments that require reliable and scalable computing solutions.

Incorporating advanced technologies, the E5630 processor supports Intel’s Hyper-Threading, which enables each core to manage two threads concurrently. This capability significantly improves the overall throughput of the HP ProLiant DL380 G7  , allowing for better resource utilization and faster processing times. Additionally, the processor is built on a 32nm manufacturing process, which contributes to its energy efficiency while maintaining high performance levels, making it a cost-effective option for businesses looking to optimize their server infrastructure.

HP Intel Xeon E5630 Specs

• Vertical Segment : Server
• Processor Number : E5630
• Lithography : 32 nm
• Total Cores : 4
• Total Threads : 8
• Max Turbo Frequency : 2.80 GHz
• Processor Base Frequency : 2.53 GHz
• Cache : 12 MB Intel Smart Cache
• Bus Speed : 5.86 GT/s
• Number of QPI Links : 2
• TDP : 80 W
• Marketing Status : Discontinued
• Launch Date : Q1’10
• HP Intel Xeon E5630 Servicing Status : End of Servicing Lifetime
• Embedded Options Available : No
• Max Memory Size (dependent on memory type) : 288 GB
• Memory Types : DDR3 800/1066
• Max # of Memory Channels : 3
• Max Memory Bandwidth : 25.6 GB/s
• Physical Address Extensions : 40-bit
• ECC Memory Supported ‡ : Yes
• Sockets Supported : FCLGA1366,LGA1366
• Max CPU Configuration : 2
• TCASE : 77.6°C
• Package Size : 42.5mm X 45mm
• Intel Turbo Boost Technology ‡ : 1.0
• Intel Hyper-Threading Technology ‡ : Yes
• Intel 64 ‡ : Yes
• HP Intel Xeon E5630 Instruction Set : 64-bit
• Instruction Set Extensions Intel : SSE4.2
• Idle States : Yes
• Enhanced Intel SpeedStep Technology : Yes
• Intel Demand Based Switching : Yes
• Thermal Monitoring Technologies : No
• Intel AES New Instructions : Yes
• Intel Trusted Execution Technology ‡ : Yes
• Execute Disable Bit ‡ : Yes
• Intel Virtualization Technology (VT-x) ‡ : Yes
• Intel Virtualization Technology for Directed I/O (VT-d) ‡ : Yes
• Intel VT-x with Extended Page Tables (EPT) ‡ : Yes
