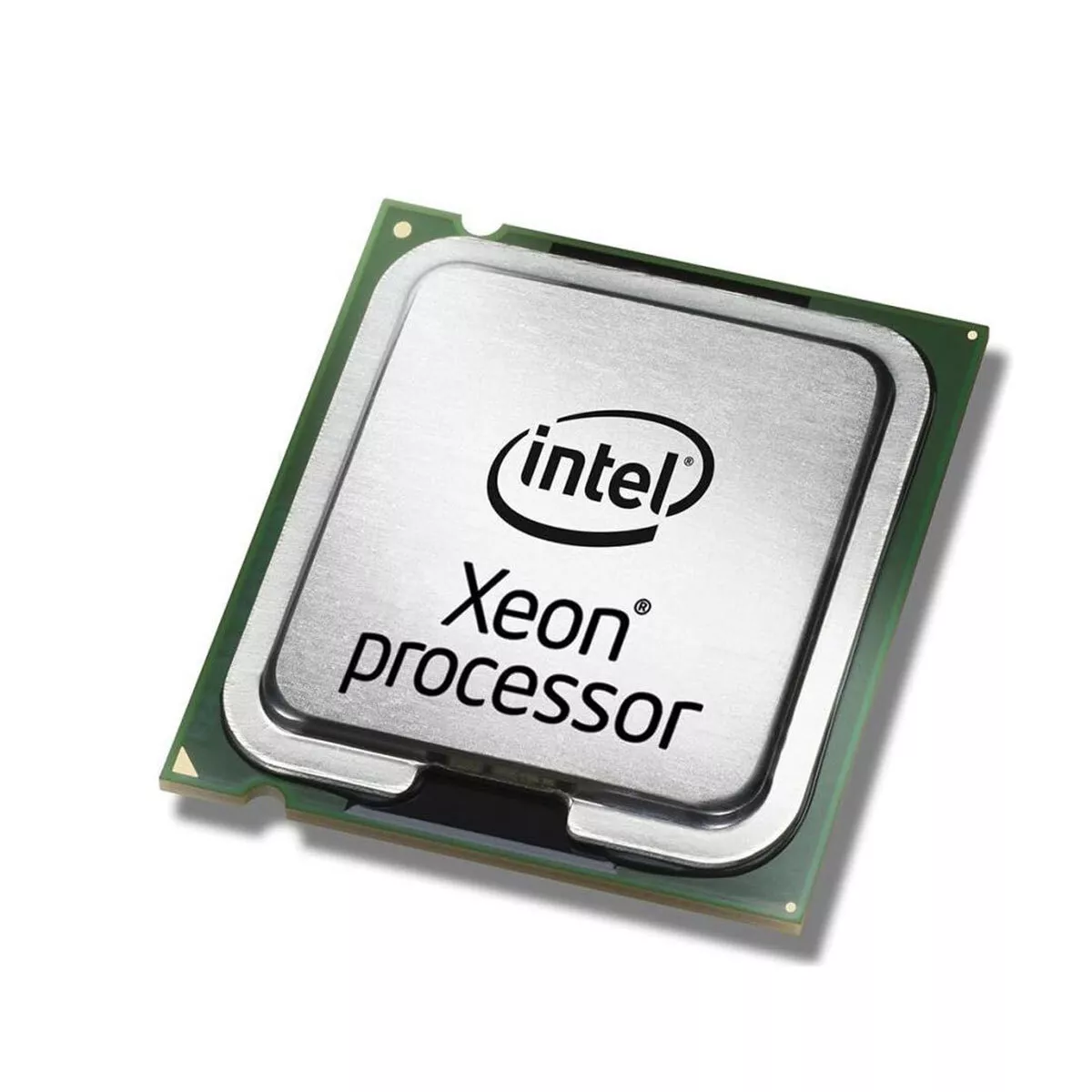

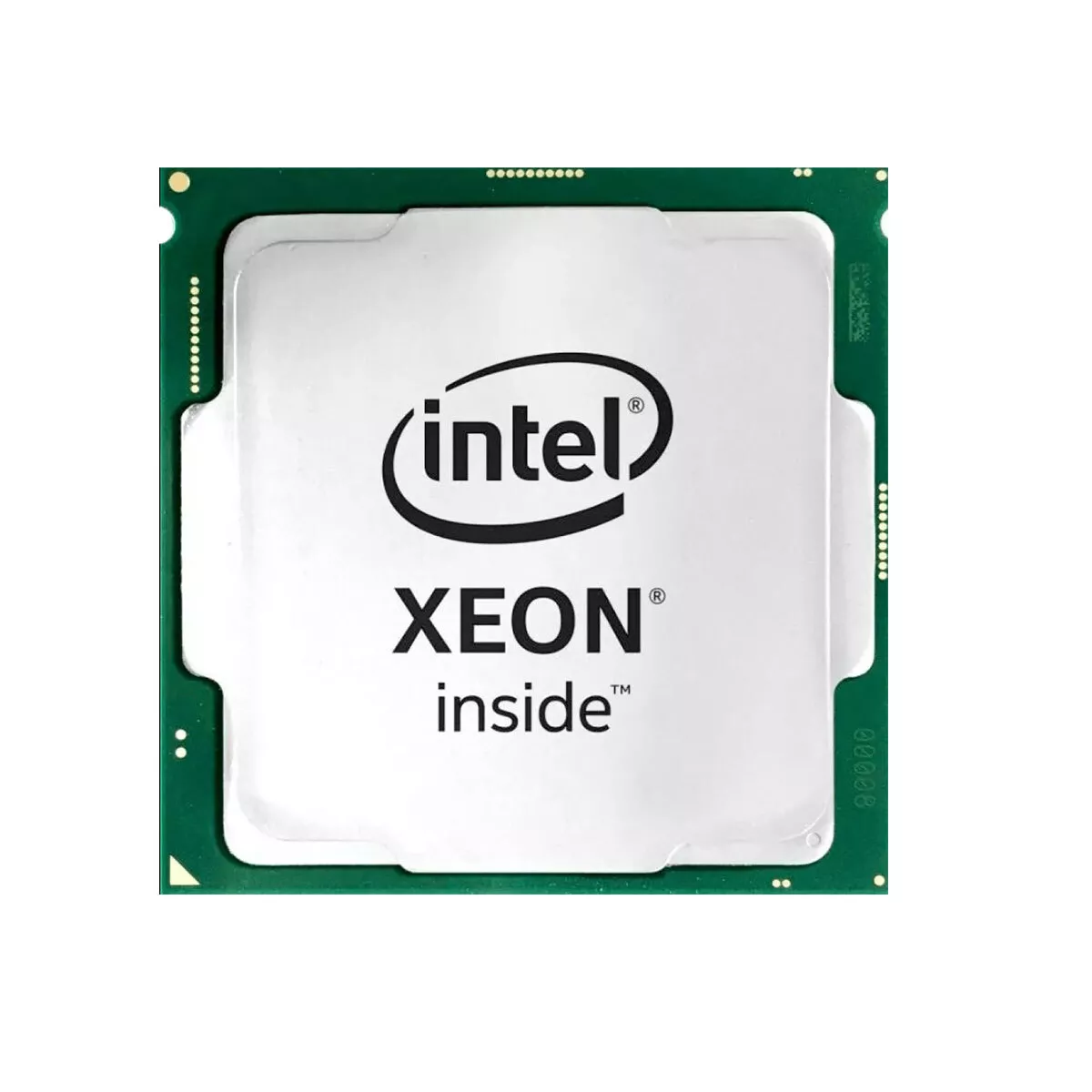

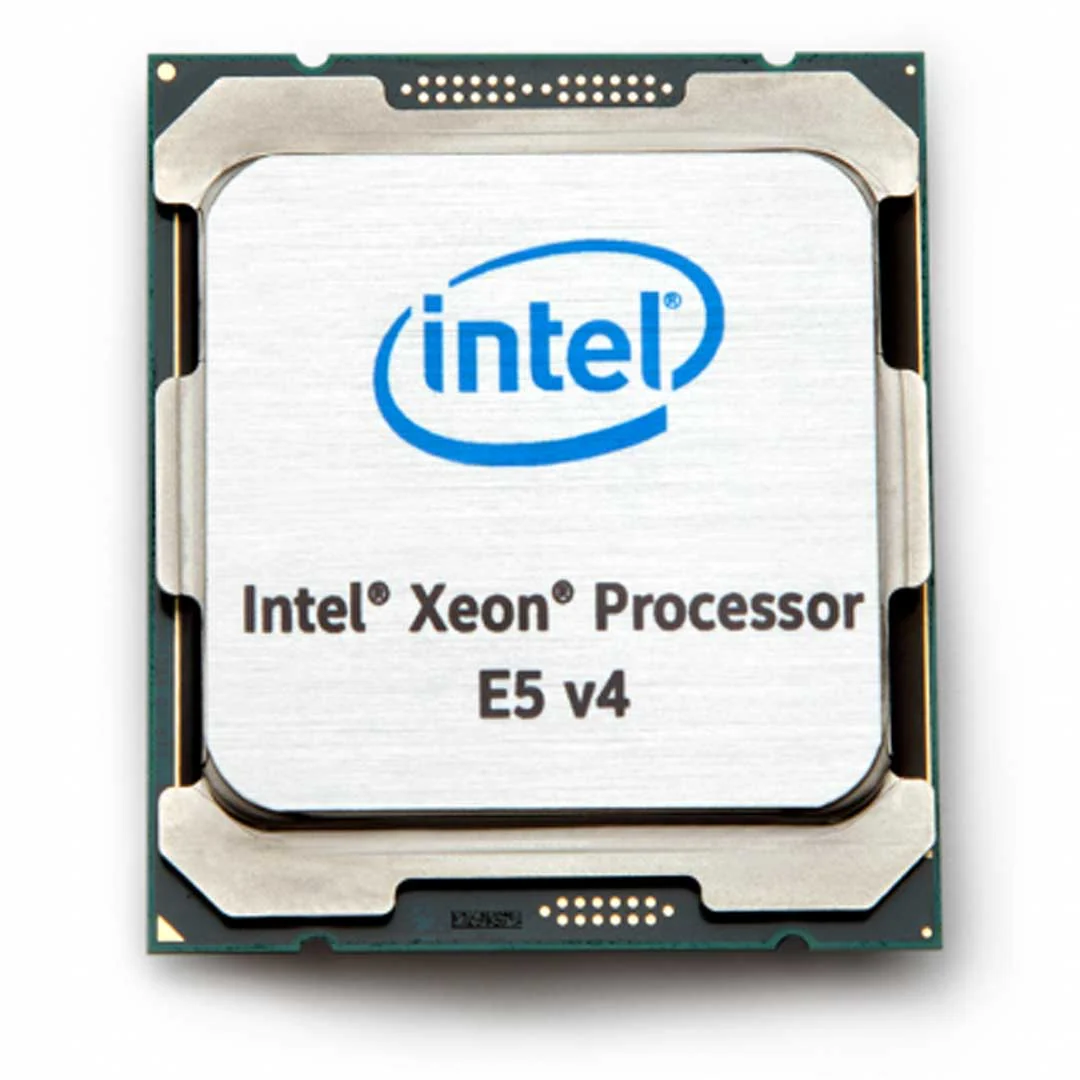

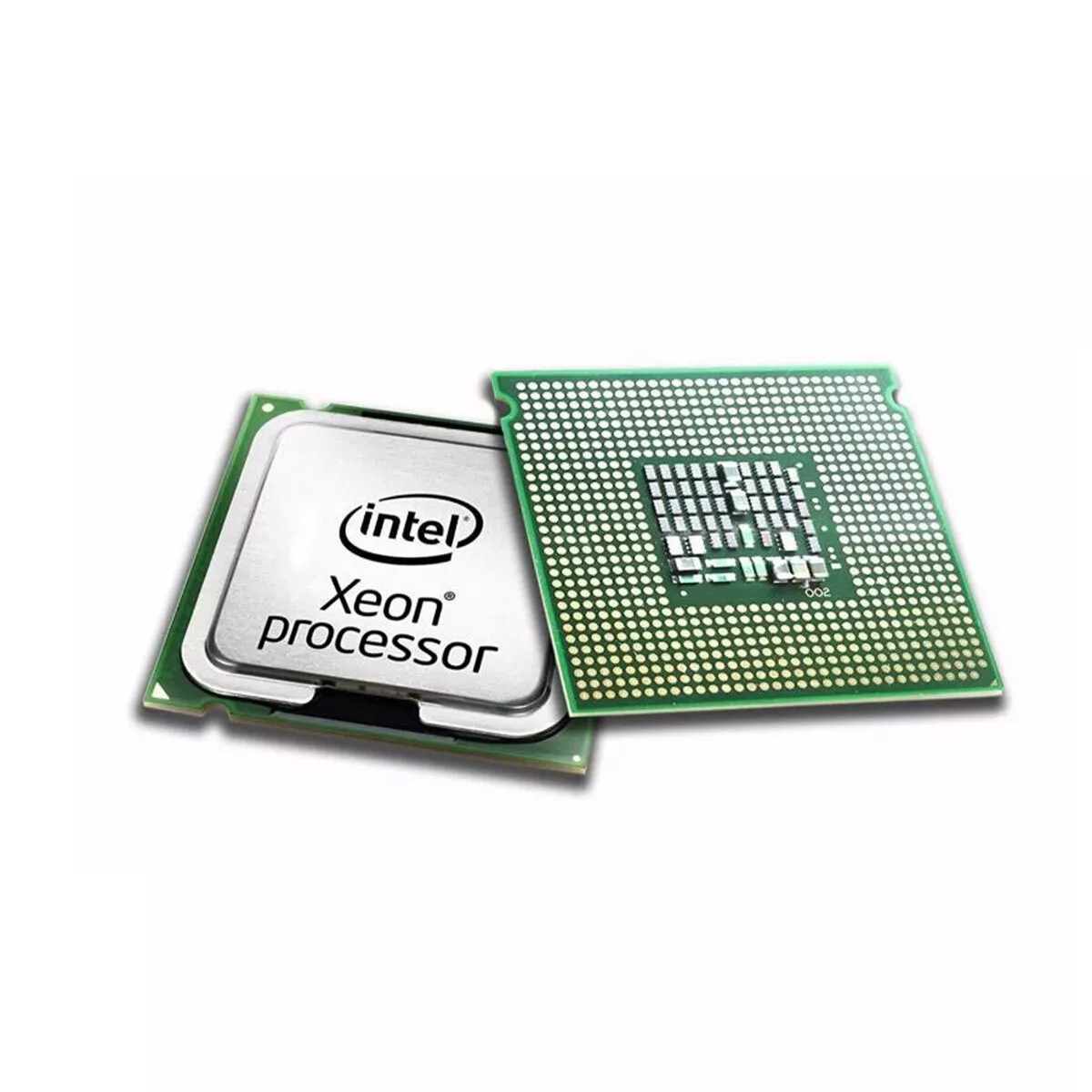

Intel Xeon E5-2660 V4 105W

Description

The Intel Xeon E5-2660 V4 E5-2660V4 105W is a high-performance processor designed for demanding server and workstation applications. With a thermal design power (TDP) of 105 watts, this processor strikes a balance between efficiency and performance, making it suitable for a variety of enterprise-level tasks. It is built on Intel’s advanced microarchitecture, which allows for enhanced processing capabilities and improved energy efficiency, ensuring that it can handle intensive workloads with ease.

This processor features a total of 14 cores and 28 threads, enabling it to execute multiple tasks simultaneously, which is particularly beneficial for virtualization and data-intensive applications. The E5-2660V4 processor Kits operates at a base clock speed of 2.0 GHz, with the ability to boost up to 2.9 GHz under optimal conditions, providing the necessary power for both single-threaded and multi-threaded applications. Additionally, it supports Intel’s Turbo Boost technology .

Intel Xeon E5-2660V4 Processor Specs

• Vertical Segment : Server
• Processor Number : E5-2660V4
• Lithography : 14 nm
• Total Cores : 14
• Total Threads : 28
• Max Turbo Frequency : 3.20 GHz
• Intel Turbo Boost Technology 2.0 Frequency‡ : 3.20 GHz
• Processor Base Frequency : 2.00 GHz
• Cache : 35 MB
• Bus Speed : 9.6 GT/s
• # of QPI Links : 2
• TDP : 105 W
• Marketing Status : Discontinued
• Launch Date : Q1’16
• Servicing Status : End of Servicing Updates
• Embedded Options Available : No
• Memory Types : DDR4 1600/1866/2133/2400
• Max # of Memory Channels : 4
• Max Memory Bandwidth : 76.8 GB/s
• Physical Address Extensions : 46-bit
• ECC Memory Supported ‡ : Yes
• Scalability : 2S
• PCI Express Revision : 3.0
• PCI Express Configurations ‡ : x4, x8, x16
• Max # of PCI Express Lanes : 40
• Sockets Supported : FCLGA2011
• Max CPU Configuration : 2
• TCASE : 79°C
• Package Size : 45mm x 52.5mm
• Intel Turbo Boost Technology ‡ : 2.0
• Intel Hyper-Threading Technology ‡ : Yes
• Intel Transactional Synchronization Extensions : Yes
• Intel 64 ‡ : Yes
• Instruction Set : 64-bit
• Instruction Set Extensions Intel : AVX2
• Idle States : Yes
• Enhanced Intel SpeedStep Technology : Yes
• Intel Demand Based Switching : Yes
• Thermal Monitoring Technologies : Yes
• Intel Flex Memory Access : No
• Intel Identity Protection Technology ‡ : No
• Intel vPro Eligibility ‡ : Intel vPro Platform
• Intel AES New Instructions : Yes
• Secure Key : Yes
• Intel OS Guard : Yes
• Intel Trusted Execution Technology ‡ : Yes
• Execute Disable Bit ‡ : Yes
• Intel Virtualization Technology (VT-x) ‡ : Yes
• Intel Virtualization Technology for Directed I/O (VT-d) ‡ : Yes
• Intel VT-x with Extended Page Tables (EPT) ‡ : Yes
