Description

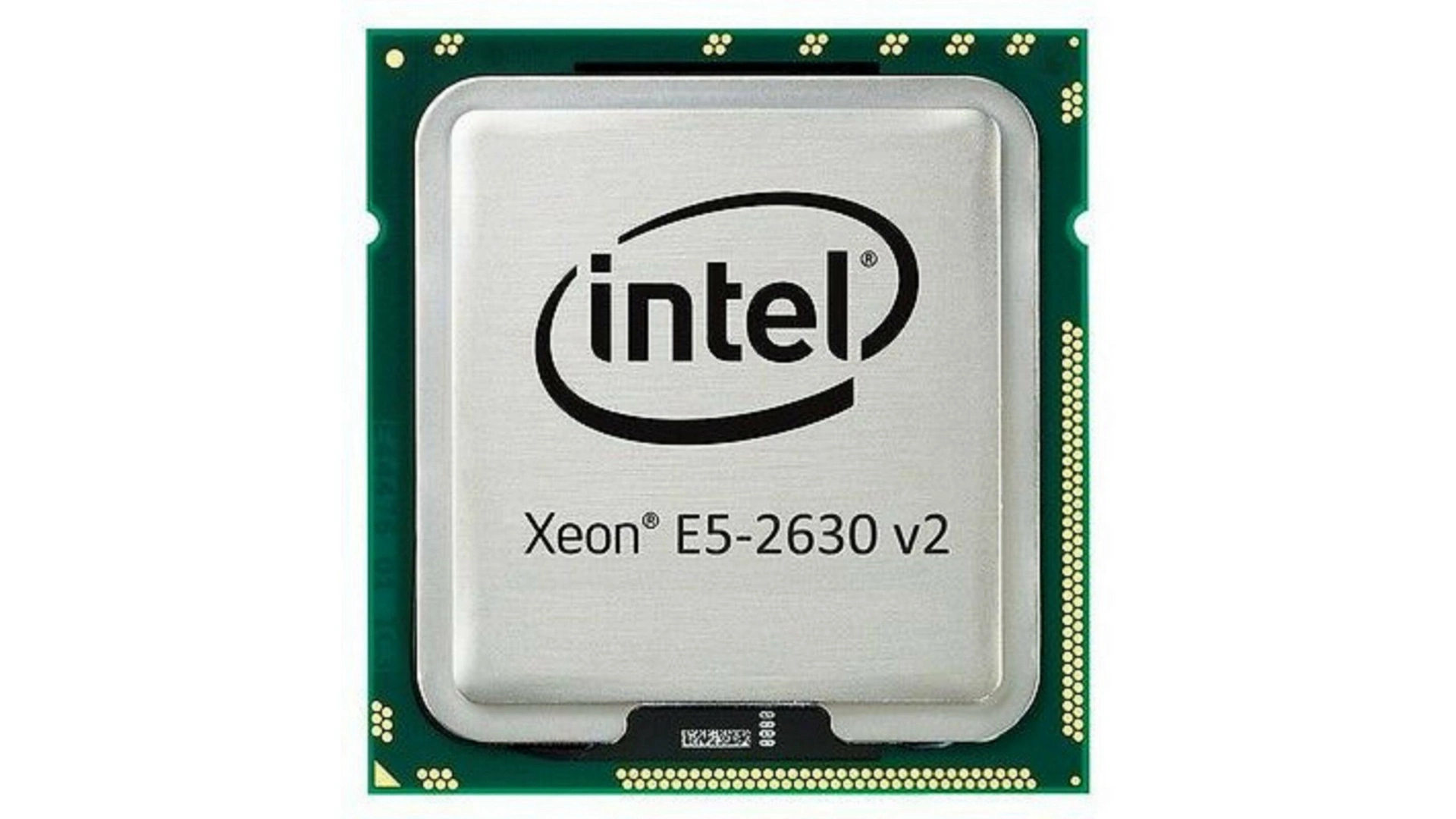

The HP DL380p Gen8 715220-B21 server is a robust and versatile platform designed to meet the demands of modern data centers. At the heart of this system lies the Intel Xeon Processor E5-2630 v2, a powerful chip that features eight cores and operates at a base frequency of 2.6 GHz, with the capability to reach up to 3.1 GHz through Intel’s Turbo Boost technology. This processor is built on a 22nm manufacturing process, which enhances energy efficiency while delivering exceptional performance for a variety of workloads, from virtualization to database management.
HP DL380p Gen8 715220-B21 Specs
- Brand : HP
- Co2 Savings : 6.72
- Processor family : Xeon E5-V2
- Processor model : E5-2630V2
- Processor frequency : 2.6 GHz
- Processor base frequency : 2.6 GHz
- Processor cores : 6
- Processor socket : LGA 2011 (Socket R)
- Processor lithography : 22 nm
- Component : for Server/workstation
- Processor threads : 12
- System bus rate : 7.2 GT/s
- Processor operating : modes 64-bit
- Processor boost frequency : 3.1 GHz
- Processor cache : 15 MB
- Processor cache type : L3
- Thermal Design Power (TDP) : 80 W
- VID Voltage Range : 0.6 – 1.30 V
- Bus type : QPI
- Number of QPI links : 2
- Memory bandwidth supported by processor (max) : 51.2 GB/s
- Maximum internal memory supported by processor : 768 GB
- Memory types supported by processor : DDR3-SDRAM
- Memory clock speeds supported by processor : 800,1066,1333,1600 MHz
- Memory channels : Quad-channel
- ECC : Yes
- On-board graphics card : No
- Thermal Monitoring Technologies : Yes
- Execute Disable Bit : Yes
- Idle States : Yes
- Market segment : Server
- Maximum number of PCI Express lanes : 40
- PCI Express slots version : 3.0
- Supported instruction sets : AVX
- Physical Address Extension (PAE) : Yes
- Scalability : 2S
- Embedded options available : Yes
- Intel AES New Instructions (Intel AES-NI) : Yes
- Intel Trusted Execution Technology : Yes
- Intel Flex Memory Access : No
- Enhanced Intel SpeedStep Technology : Yes
- Intel Identity Protection Technology (Intel IPT) : No
- Intel Hyper Threading Technology (Intel HT Technology) : Yes
- Intel Turbo Boost Technology : Yes
- Intel vPro Platform Eligibility : Yes
- Intel Demand Based Switching : Yes
- Intel VT-x with Extended Page Tables (EPT) : Yes
- Intel Secure Key : Yes
- Intel Virtualization Technology for Directed I/O (VT-d) : Yes
- Intel Virtualization Technology (VT-x) : Yes
- Intel vPro Technology : Yes
- Tcase : 71 °C
- Intel Virtualization Technology (Intel VT) : VT-d, VT-x
