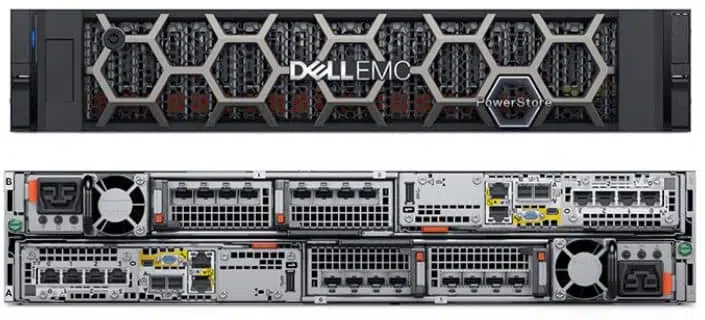

Dell PowerStore 9000T Storage

Dynamic Resiliency Engine (DRE)The ground-breaking Dell EMC PowerStore 9000T Storage achieves new levels of operational simplicity and agility, utilizing a container based architecture, advanced storage technologies, and intelligent automation to unlock the power of your data.

Description

Dynamic Resiliency Engine (DRE)The ground-breaking Dell EMC PowerStore 9000T Storage achieves new levels of operational simplicity and agility, utilizing a container based architecture, advanced storage technologies, and intelligent automation to unlock the power of your data.

Based on a scale-out architecture and hardware-accelerated advanced data reduction

Dell EMC PowerStore 9000T Storage is designed to deliver enhanced resource utilization and performance that keeps pace with application and system growth.

Utilizing the proven capabilities of VMware ESXi, PowerStore X models with AppsON provide the unique ability to host data-intensive and storage applications directly on the PowerStore system with a storage based virtualization environment,Dell EMC PowerStore 9000T Storage

With the flexibility of seamless movement of applications between the storage system and external VMware servers.

PowerStore T models provide organizations with all the benefits of an enterprise unified storage platform for block, file and vVol data

While enabling flexible growth with the intelligent scale-up AND scale-out capability of appliance clusters.



Dell EMC PowerStore 9000T Storage Specifications

Base System Enclosures : 21×2.5” drives, 4xNVRAM modules four IO modules

Max Drives : 96

CPU per Appliance : 4 x Intel CPUs

NVRAM per Appliance : 4

Base Enclosure : A 2U, 2 node enclosure with twenty-five 2.5” NVMe drive slots

Expansion Enclosure : A 2U enclosure attached to a PowerStore base enclosure with twenty-five 2.5” SAS drives slots (3 max per appliance)

Power SuppliesPowerStore appliances are powered by 2 redundant power supplies (PS) per enclosure.

Data Resiliency : Dynamic Resiliency Engine (DRE)

Max Mezzanine cards per Appliance : 2

Max IO Modules per Appliance : 4

Embedded SAS IO Ports per Appliance : 4 x 4 lane 12Gb/s SAS ports for back end connection

Max front end Ports per Appliance (all types) : 24

Max 16/32Gb FC Ports per Appliance : 16

Max 10 Gbase-T/iSCSI Ports per Appliance : 24

Max 10/25 GbE/iSCSI Ports per Appliance : 24

Dell EMC PowerStore 9000T Storage Max Raw Capacity : 898.56 TB , 817.36 TiB

Protocols : iSCSI, NVMe-FC, FC, vVols, SMB, NFS

Max Initiators : 2,000

Max Block Volumes/Clones : 2,000

Max Volumes per Volume Group : 75

Max Volume Groups : 125

Max Volume Size : 256 TB

Max Snapshots (Block) : 50,000

Max vVol Storage Containers : 50

Max vVols : 19,000

OS Support : See the Dell EMC Simple Support Matrix on delltechnologies.com

Dell EMC PowerStore 9000T Storage Max. Appliances : 4

Max. Front End Ports : 96

Max. iSCSI sessions : 2,048

Max Initiators : 2,000

Max Initiators in an Initiator Group : 1,024

AC Line Voltage : 10.4 A max at 200V

AC Line Current (operating maximum) : 2088.8 VA (2047 W) max at 200V240V (+/- 10%)

Dell EMC PowerStore 9000T Storage Power Factor : 0.95 minimum at full load, 200 VAC

Heat Dissipation (operating maximum) : 7.37 x 10 J/hr, (6,985 Btu/hr) max 200VAC

In-rush Current : 45 Apk “cold” per line cord, at any line voltage

Startup Surge Current : 120 Apk “hot” per line cord, at any line voltage

AC Protection : 20 A fuse on each power supply, single line

AC Inlet Type : IEC320-C20

Ride-through Time : 10 ms min

Current Sharing : ± 5 percent of full load, between power supplies

Weight : Empty 35.80 kg/79 lbs , Full 41.7 kg/92 lbs

Vertical size : 2 NEMA units

Height : 8.72 cm / 3.43 inches.

Width : 44.72 cm / 17.61 inches

Dell EMC PowerStore 9000T Storage Depth : 79.55 cm / 31.32 inches

Deployment Services :

  • Dell EMC ProDeploy Enterprise Suite
  • Dell EMC Migration Services
  • Dell EMC Residency Services

Support Services : Dell EMC PowerStore 9000T Storage

  • Dell EMC ProSupport Enterprise Suite
  • Anytime Upgrades
  • Dell EMC Optimize for Storage

Services & Support Technologies :

  • MyService360
  • SupportAssist Enterprise

Recommended Range Operation : 18°C to 27°C (64.4°F to 80.6°F) and 15°C (59°F) dew point

Continuous Allowable Range Operation : 5°C to 35°C (50°F to 95°F) at 20% to 80% relative humidity with 21°C (69.8°F) maximum dew point (maximum wet bulb temperature). De-rate maximum allowable dry bulb temperature at 1°C per 300m above 950m (1°F per 547 ft above 3117 ft).

Improbable Operation (Excursion Limited) : 35°C to 40°C (with no direct sunlight on the equipment) at -12°C minimum dew point and 8% to 85% relative humidity with 24°C maximum dew point (wet bulb temperature).

Outside the continuously allowable range (10°C to 35°C), the system can operate down to 5°C or up to 40°C for a maximum of 10% of its annual operating hours.

For temperatures between 35°C and 40°C (95°F to 104°F), de-rate maximum allowable dry bulb temperature by 1°C per 175m above 950m (1°F per 319 ft above 3117 ft).

Temperature Gradient : 20°C / hour (36°F / hour)

Altitude : Max Operating: 3050m (10,000ft)
