Elite Technology Based

QNAP TS-832PX NAS Storage

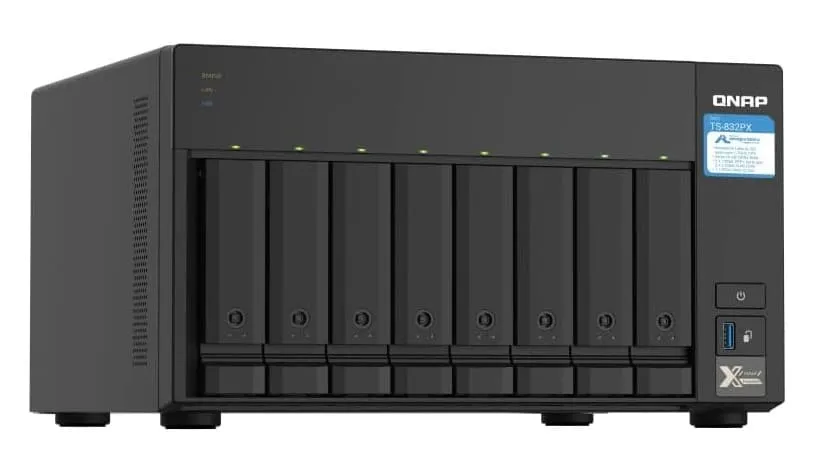

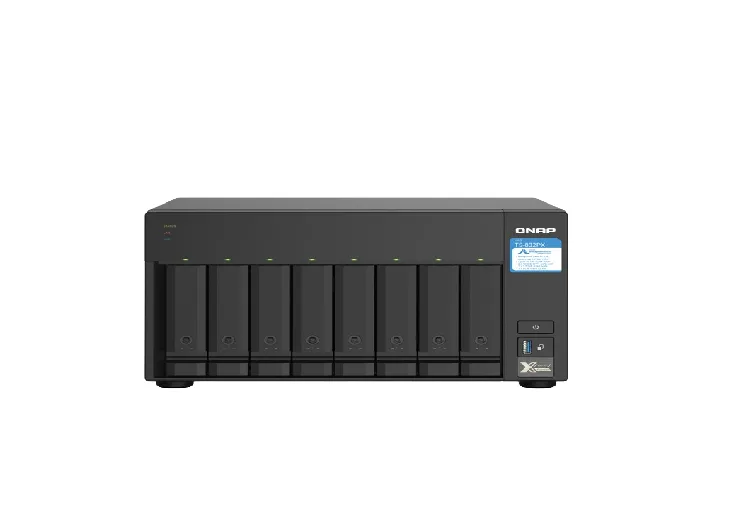

The QNAP TS-832PX is a Network Attached Storage (NAS) device that comes equipped with SFP+ specs.

QNAP TS-832PX NAS Storage is designed to provide high-speed data transfer rates and reliable storage solutions for businesses and individuals alike.



Description

The QNAP TS-832PX is a Network Attached Storage (NAS) device that comes equipped with SFP+ specs.

QNAP TS-832PX NAS Storage is designed to provide high-speed data transfer rates and reliable storage solutions for businesses and individuals alike.

With its advanced features and capabilities, the QNAP TS-832PX is an ideal choice for those who require a robust and efficient storage solution.

Features

The quad-core 1.7GHz TS-832PX features eight 3.5-inch SATA 6GB/s drive bays, providing huge storage potential for a wide range of applications and everyday usage.

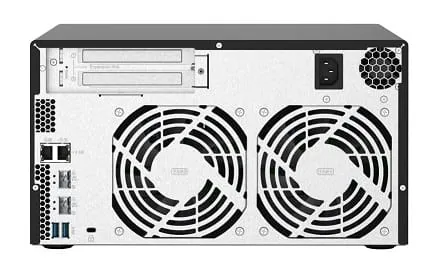

With two 10GbE SFP+ and two 2.5GbE LAN ports, the QNAP TS-832PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing.

Various PCIe cards are also supported, including QM2 cards that provide M.2 SATA/NVMe SSD caching and Qtier auto-tiering storage to boost NAS performance.

  • Two 10GbE SFP+ and two 2.5GbE RJ45 network ports empower bandwidth-demanding tasks and accelerate file sharing.
  • PCIe expansion allows for installing a QM2 card to add M.2 SSDs for caching, a 10/5GbE network card, or a wireless network expansion card.
  • Snapshots record your system status, allowing you to protect files and data from accidental deletion and malware attacks.
  • Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
  • Qtier auto-tiering technology and SSD caching enable constant storage optimization.
  • Increase the storage capacity of the TS-832PX with QNAP TR RAID expansion encl

QNAP TS-832PX NAS Storage Specs

CPU : Annapurna Labs Alpine AL324 ARM Cortex-A57 4-core 1.7GHz processor

CPU Architecture : 64-bit ARM

Floating Point Unit : yeas

QNAP TS-832PX NAS Storage Encryption Engine : yeas

System Memory : 4 GB SODIMM DDR4(1 x 4 GB)

Maximum Memory : 16 GB (1 x 16 GB)

Memory Slot : 1 x SODIMM DDR4

Flash Memory :  512 MB (Dual boot OS protection)

Drive Bay : 8 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility 3.5-inch bays :

  • 3.5-inch SATA hard disk drives
  • 2.5-inch SATA hard disk drives
  • 2.5-inch SATA solid state drives

QNAP TS-832PX NAS Storage Hot-swappable : yeas

M.2 Slot : Optional via a PCIe adapter

SSD Cache Acceleration Support : yeas

2.5 Gigabit Ethernet Port (2.5G/1G/100M) : 2 (2.5G/1G/100M/10M)

10 Gigabit Ethernet Port : 2 x 10GbE SFP+

Wake on LAN (WOL) : Only the 2.5GbE port

Jumbo Frame : yeas

PCIe Slot 1 :

  • Slot 1: PCIe Gen 2 x2
  • PCIe bandwidth limitations will restrict the NAS 10GbE performance.
  • Card dimensions for PCIe slot:210 x 68.9x 24.76 mm / 8.27 x 2.71 x 0.97 inches.

USB 3.2 Gen 1 port : 3

Form Factor : Tower

LED Indicators : System Status, LAN, USB, HDD1~8

Buttons : Power, Reset, USB Copy

Dimensions (HxWxD) : 180.2 × 329.3 × 280.8 mm

QNAP TS-832PX NAS Storage Weight (Net) : 7.05 kg

Weight (Gross) : 8 kg

Operating Temperature : 0 – 40 °C (32°F – 104°F)

Storage Temperature : -20 – 70°C (-4°F – 158°F)

Relative Humidity : 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit : 250W, 100-240V AC, 50/60Hz, 3.5A

Power Consumption : HDD Sleep Mode 27.949 W

Power Consumption : Operating Mode, Typical 50.858 W

Fan System fan : 2 x 120mm, 12VDC

QNAP TS-832PX NAS Storage CPU fan : 1 x 60mm

System Warning : Voice prompts or Buzzer

Kensington Security Slot : yeas

Standard Warranty : 2

Max. Number of Concurrent Connections (CIFS) – with Max. Memory : 700
