Description

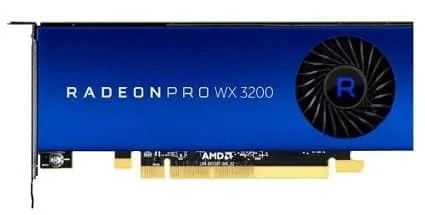

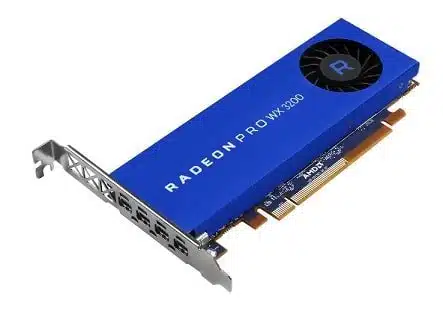

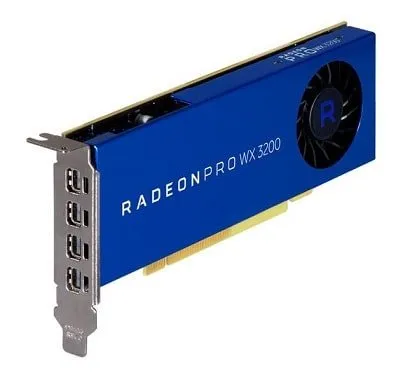

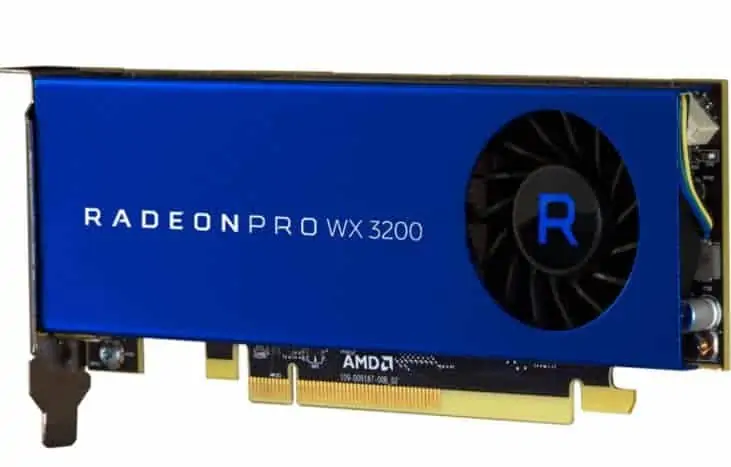

High Quality AMD Radeon PRO WX 3200 Graphics Performance for Small Form Factor Workstations
The AEC and Manufacturing industries have seen an increased demand for quality visuals in recent years.
The Radeon WX 3200 workstation graphics card is ideal for mainstream CAD engineers who require an ISV certified graphics solution at an unbelievable price, while providing a full set of workstation features for deployments of all sizes.
The Radeon Pro WX 3200 workstation graphics card has a small form factor that is designed to fit into nearly all desktop workstations.
The GPU supports the latest UHD display standards with four Mini-DisplayPort 1.4 outputs, and offers 4GB of high speed GDDR5 memory with up to 1.66 TFLOPS of single precision compute performance.
It is powered by the enterprise-grade AMD Radeon Pro Software for Enterprise driver
AMD GPUs Features
- Professional Application Certifications
- AMD 14nm “Polaris” Architecture
- 10-bit Color Depth for true colours
- Low-Profile Form Factor
- AMD Eyefinity Technology Support5
- FCC Class A, CE, C-Tick, BSMI, KCC, UL, VCCL,
- RoHS, and WEEE Regulatory Compliance
- AMD Radeon Pro Software for Enterprise
- AMD Remote Workstation6
- AMD DirectGMA Support
- AMD Radeon Pro ReLive4
- AMD Radeon Pro Image Boost
Radeon PRO WX 3200 Specs
Graphics Core Next Stream Processors : 640 (10 Compute Units)
Memory Size : 4 GB GDDR5
Bandwidth : 96 GB/s
Memory Interface : 128-bit
Display Output : (4x) DisplayPort 1.42
Display Output Support ( 60Hz) : 4 1920×1080 (2k) , 4 3840×2160 (4K) , 2 5120×2880 (4k) , 1 7680×4320 (4K)
Video Acceleration3 : HEVC Encode (up to 4K) , HEVC Decode (up to 4K)
Supported APIs : DirectX 12, OpenGL 4.6, , OpenCL 2.0, Vulkan 1.1, , Shader Model 5.1
Max Power Consumption : 50W
Radeon WX 3200 Form Factor : 2.7” x 6.6” (H x L); Single Slot
Supported Operating Systems (64-bit) : Microsoft Windows 10 , Linux
