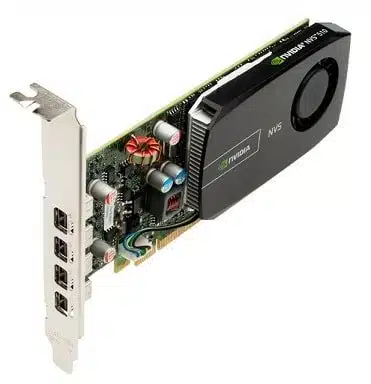

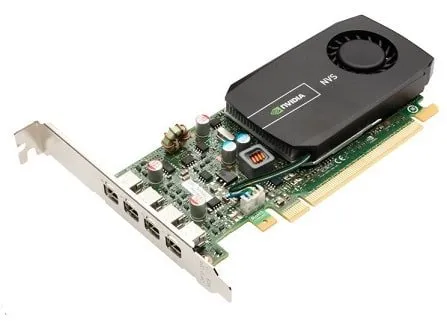

NVIDIA NVS 510 Graphics Card

Reliably visualize any data across four displays with the energy‑efficient NVIDIA NVS 510 business Graphics Card ( GPU ) with the lowest Price and good Specs .

The NVIDIA NVS 510 gives you the latest graphics and display technologies plus industry-leading, multi-display management capabilities in an energy-efficient, low-profile form factor.



Description

Reliably visualize any data across four displays with the energy‑efficient NVIDIA NVS 510 business Graphics Card ( GPU ) with the lowest Price and good Specs .

The NVIDIA NVS 510 gives you the latest graphics and display technologies plus industry-leading, multi-display management capabilities in an energy-efficient, low-profile form factor.

This makes it the ideal graphics solution for professionals who need to visualize and digest a great deal of information in the financial trading, command and control, and digital-signage markets.

The NVIDIA NVS 510 features four compact mini DisplayPort connectors with a custom built-in retention mechanism, delivering ultra-high resolutions up to 3840×2160 60 Hz.

It also supports advanced DisplayPort 1.2 features like Multi Stream Technology and Stream Cloning1, which enables efficient cable management, as well as cost-effective multi-display installations.

The NVS 510 is based on the latest NVIDIA Kepler GPU technology and configured with 2 GB of dedicated high-performance graphics memory.

This means you get more than 3x the performance of previous-generation NVS solutions, without increasing overall power consumption.

Along with NVIDIA’s Unified Driver Architecture (UDA) and suite of enterprise management tools, the NVS 510 offers a highly reliable solution for seamless wide-scale deployment and simplified resource management.

Its ultraquiet active-cooling technology and low-profile form factor give IT administrators the freedom to fit multiple NVS 510 cards into space- and power-constrained systems or existing installations

Features

Quad Display Support :

  • The all-new NVS 510 display engine drives up to four displays simultaneously and fully supports the next generation DisplayPort 1.2 standard capable of resolutions up to 3840×2160 60 Hz.
  • When used with the NVIDIA nView Desktop Software utility, this makes it easy to deploy multiple displays across a desktop or build an expansive digital-signage wall.

DisplayPort 1.2 Features :

  • The integrated DisplayPort 1.2 engine produces crisp image quality while driving ultra-high-resolution panels (up to 3840 x 2160 60 Hz).
  • NVS 510 also supports advanced DisplayPort 1.2 features like multi-stream technology (MST) and stream cloning.
  • MST lets you drive up to four independent displays simultaneously from any one display port output, while stream cloning enables NVS 510 to clone up to four instances of each display output to drive a maximum of 16 displays

NVIDIA Enterprise Management Tools :

  • exhaustive enterprise-management tools maximize your system uptime by enabling seamless widescale deployment.
  • This allows remote query and control of graphics and display settings for systems spread across installations

Low-Profile and Flexible Form Factor :

  • Its profile simplifies IT administration and deployment throughout an enterprise.
  • Regardless of desktop system (standard tower PC, workstation, small form-factor system) or the display type (LCD, DLP, plasma), NVS 510 fits into any existing installation without being disruptive



NVIDIA NVS 510 Graphics Card Specs

CUDA Cores : 192

GPU Memory : 2GB DDR3

Memory Interface : 128-bit

Memory Bandwidth : 28.5GB/s

System Interface : PCI Express 2.0 × 16

Maximum Power Consumption : 33.4W

Energy Star Compliant : Yes

Thermal Solution : Ultra-quiet Fansink

Form Factor : 2.713″ H x 6.30″ L, Single Slot

Display Connectors : 4 mini-DisplayPort

NVIDIA NVS 510 Graphics Card DisplayPort : 1.2 Yes

DisplayPort with Audio : Yes

Mini-DP to DP adapters : 4 included (MDP-DP-FOUR-PCK)

Mini-DP to DVI-D SL adapters : 4 included (MDP-DVI-FOUR-PCK)

Maximum DP 1.2 Resolution : 3840×2160 at 60Hz

Maximum DVI-D SL Resolution : 1920×1200 at 60Hz

HDCP Support : Yes

Graphics APIs : Shader Model 5.0, OpenGL 4.3, DirectX 11

Compute APIs : CUDA, DirectCompute, OpenCL

NVIDIA NVS 510 Graphics Card NVIEW : Yes

Mosaic Mode : Yes (Windows 8, 7, and Linux)
