Description

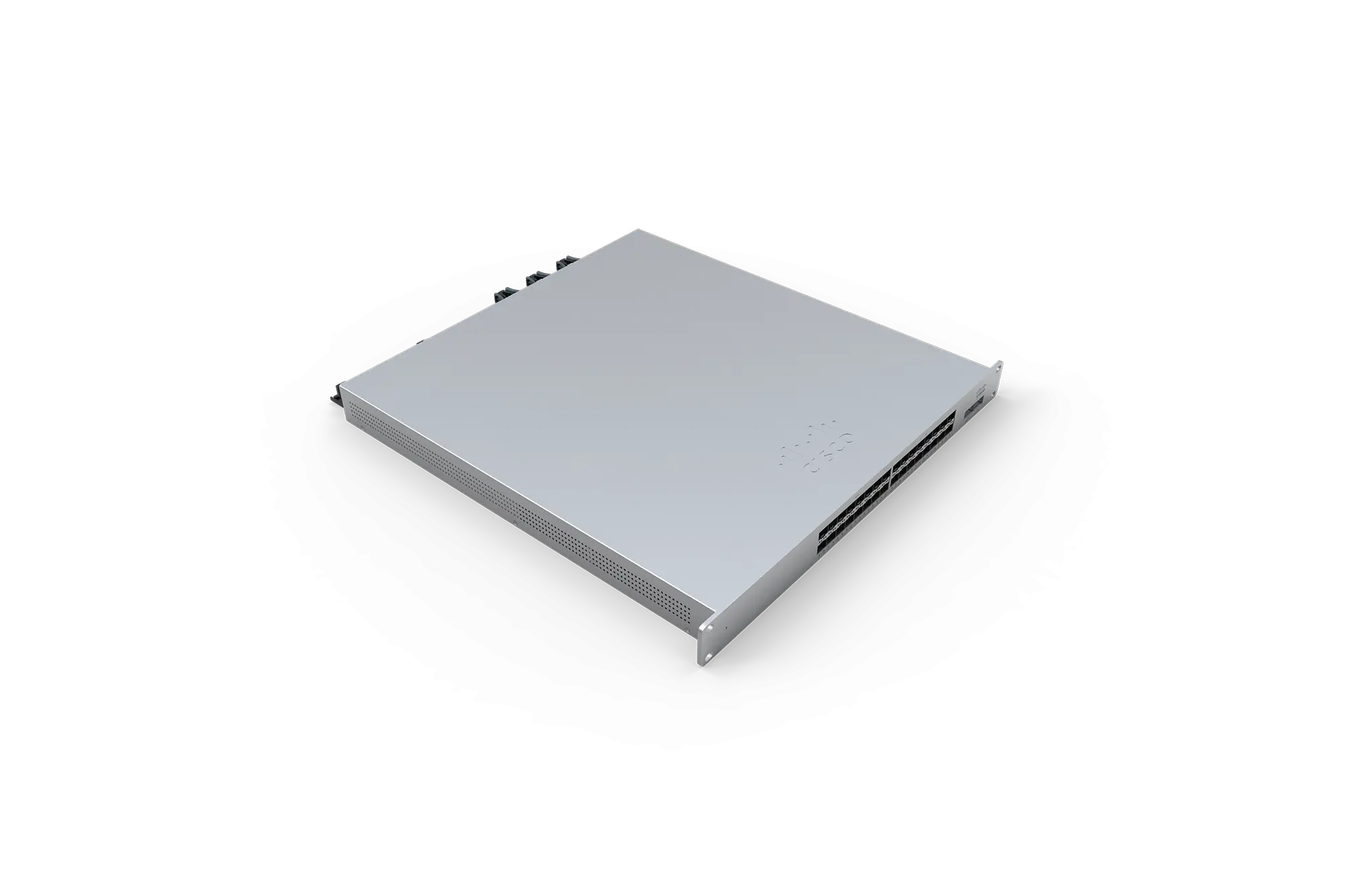

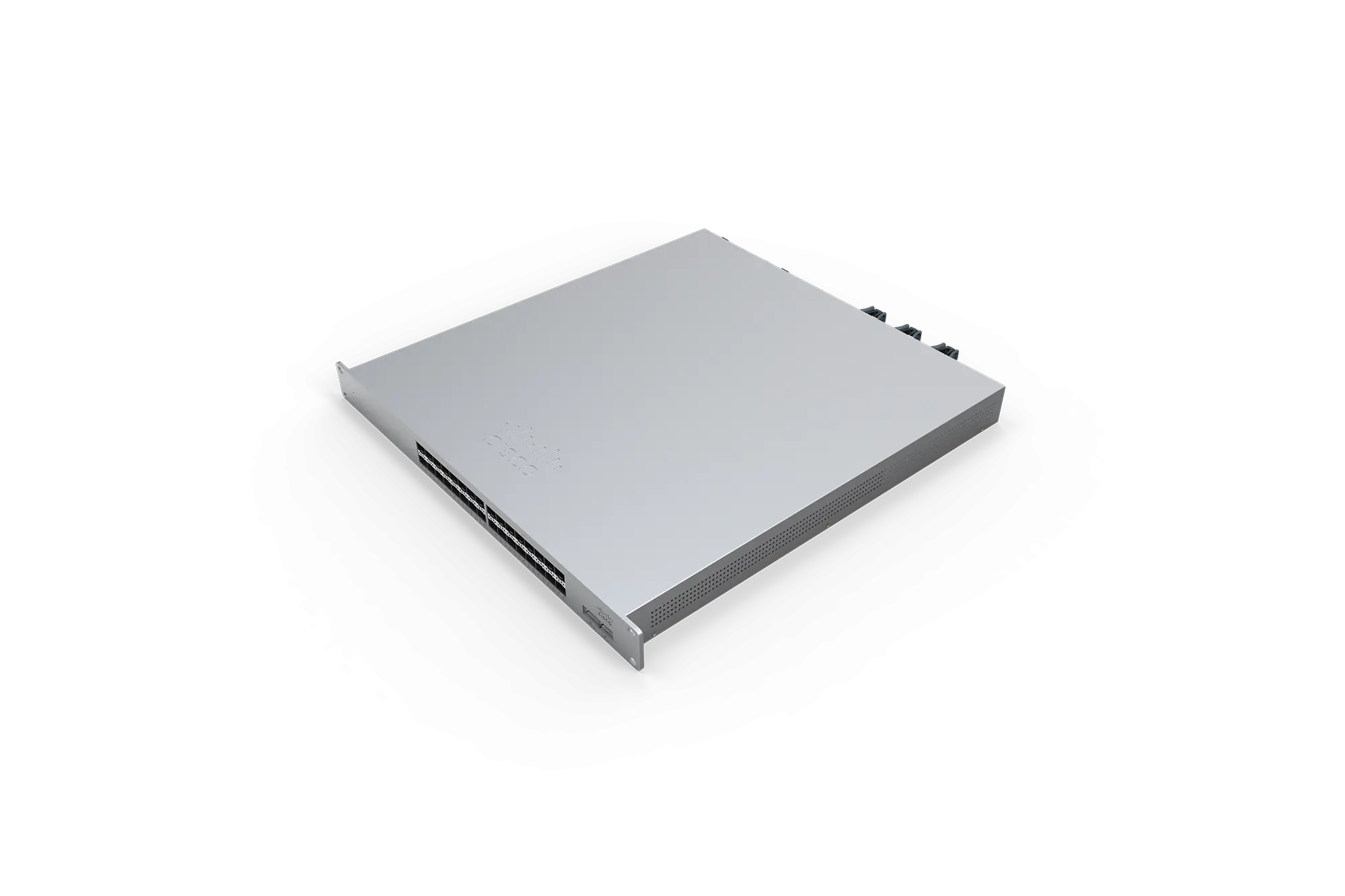

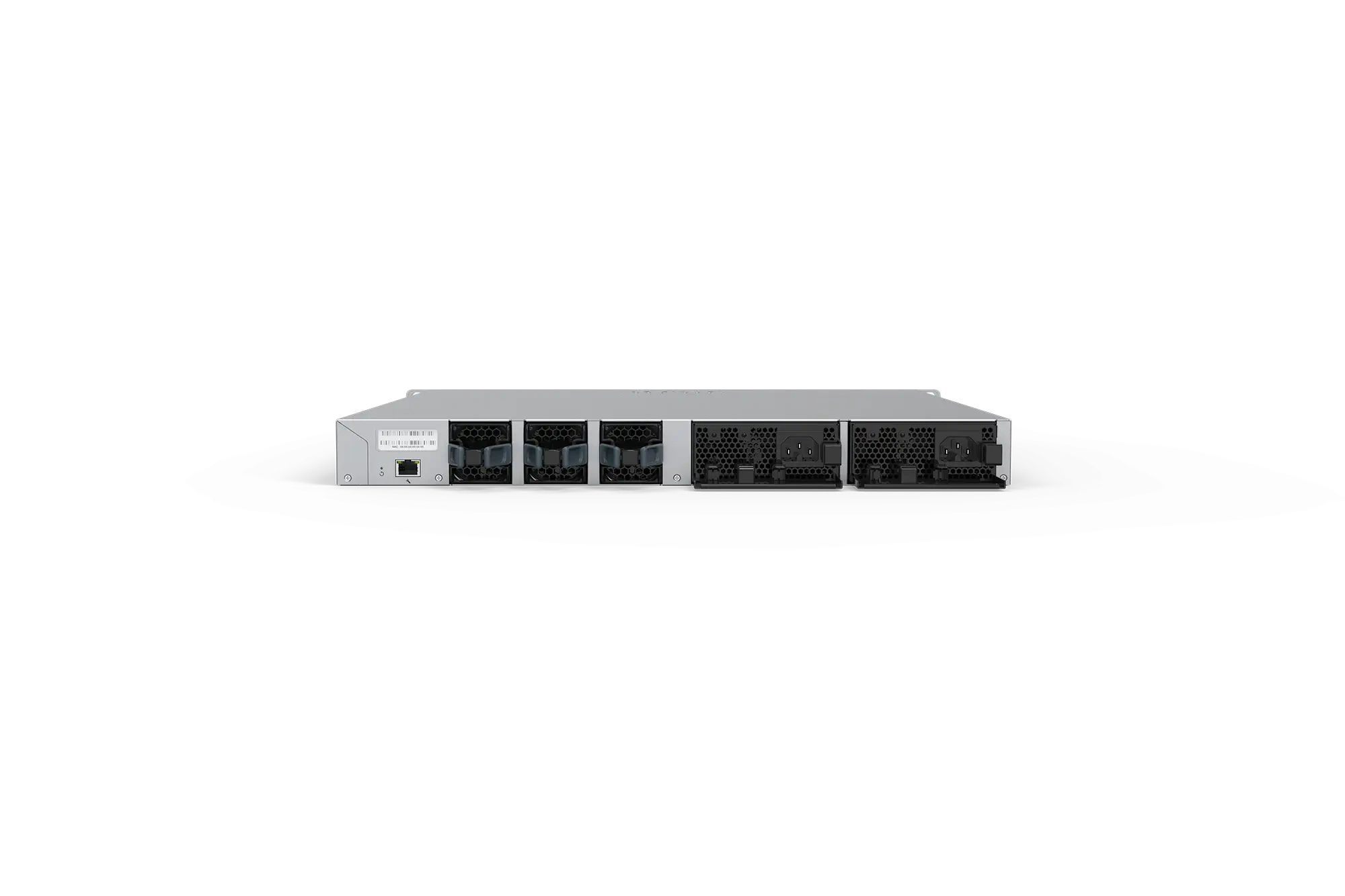

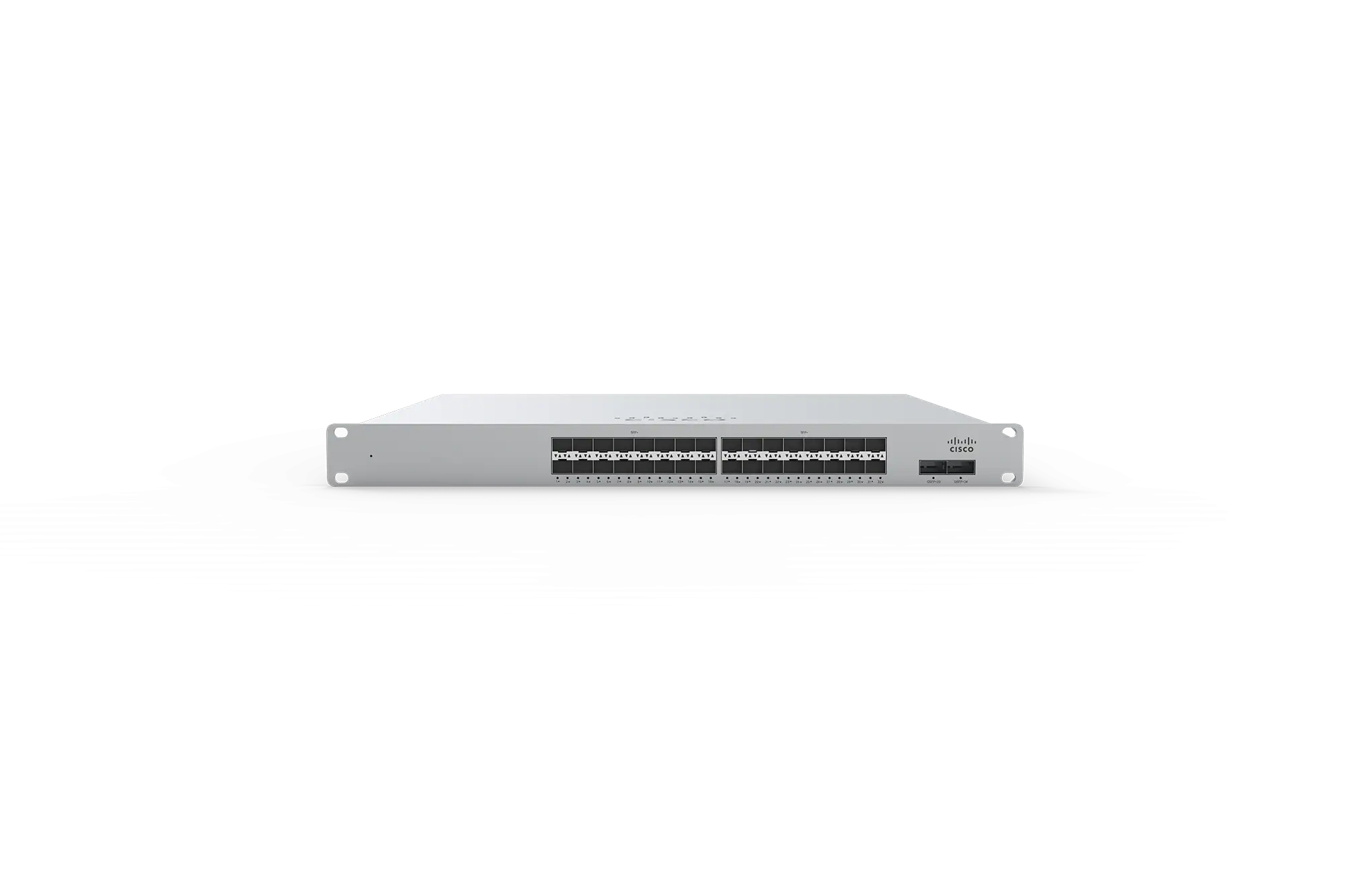

Cisco Meraki MS400 series MS425-32-HW cloud managed switch brings powerful cloud-managed switching to the aggregation layer. This range of 1 and 10Gbps fiber aggregation network switches adopts the benefits of the cloud simplified management, reduced complexity, network wide visibility and control, and lower cost for campus deployments.
Cisco Meraki MS400 series EXPANDING CLOUD MANAGEMENT TO THE CAMPUS
- Cisco Meraki aggregation switches extend Meraki’s cloud management to campus deployments.
- Just like Cisco access switches, these aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
- Meraki network devices are managed through an elegant, intuitive cloud interface, rather than a cryptic command line.
- To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files – or pre-staging.
Features
- Managed via the Cisco Meraki Dashboard
- Remote Packet Capture Tools via Meraki Dashboard
- Automatic Firmware upgrades
- SNMP/Syslog Integration
- IPv4/6 ACL support
- 802.1q VLAN tagging
- Broadcast Storm Control
- Dynamic ARP Inspection / DHCP Snooping
- 802.1X Authentication
- 16 or 32 x 10,000 Mbps SFP+
- 2x 40G QSFP+ uplink/stacking ports
- L3 Switching including OSPF
- Hot Swappable Power Supplies and Fans
- Warm Spare capable
Request for Quotation Now!
Cisco Meraki MS400 series Specs
- Switching capacity : 800 Gbps
- Idle / Full Load Power : 98W/136 W
- cisco Meraki MS400 series Power Supply Configuration : Hot-swappable
- Supported Power Supply : 2 x 250W PSU ,1x Power Supply (MA-PWR-250WAC), Mounting screw kit, 3 x Pre-Installed Fans
- Meraki MS425-32-HW cloud switch Dimensions : 19.1 x 20.3 x 1.7” (48.5 x 51.6 x 4.4 CM)
- Weight : 13.82 lb (6.27 kg)
- Environment : Operating temperature: 0°C to 40°C ,Humidity: 5 to 95% non-condensing
- Ports : 24 ,Type10 Gigabit SFP+
- Network Technology : 40GBase-X , 10GBase-X
Other Specs
Interfaces
- 32x 1 0GbE SFP+ Fiber
- 2 × 40GbE QSFP+ uplink/stacking ports
- RJ45 Management port
Cisco Meraki MS400 series Management
- Managed via the Web with the Meraki cloud management platform
- Integrated with Meraki Wireless and complete portfolio of IT products and solutions
- Zero-touch remote provisioning (no staging needed)
- Detailed historical per-port and per-client usage statistics
- Cisco Meraki MS400 with DHCP, client, and hostname fingerprinting
- SNMPd and SYSLOG support for integration with other network management solutions
- Automatic firmware upgrades with scheduling control
- Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Layer 3
- Static routing
- DHCP helper
- DHCP server
- Open shortest path first (OSPF v2)
- Warm spare for L3 gateway redundancy
- Automatic DHCP failover in warm spare mode
Cisco Meraki MS400 Remote Diagnostics
- Email, SMS and Mobile push notification alerts
- Cable testing and link failure detection with alerting
- Live remote packet capture
- Dynamic and interactive network discovery and topology
Power
- Power input: 100 – 240 VAC, 47-63 Hz
- Power consumption at idle: 98W
- Power consumption full load: 136W
